Precision Gravimetric Filling for Paints, Latex & Chemicals (10–50kg Containers)

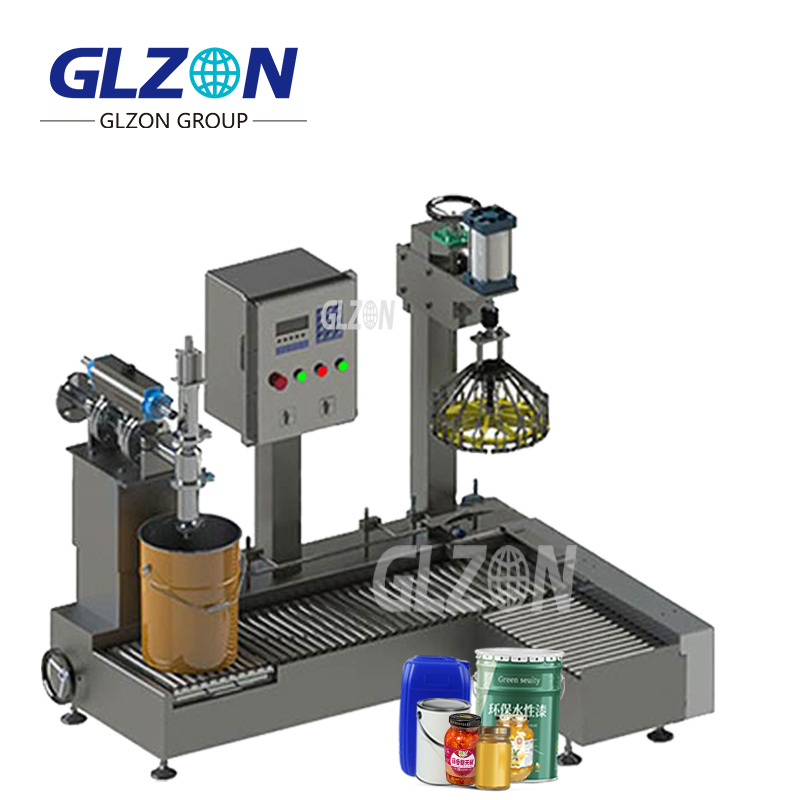

Shanghai Guangzhi Automation’s GZ-SPF1100 delivers ±0.25% weight accuracy for filling viscous liquids (1–200,000 cP) into pails, drums, or jerrycans. Designed for paint manufacturers, chemical processors, and industrial coating suppliers, this ATEX/CE-certified system slashes spillage by 98%, reduces labor costs by 80%, and ensures batch consistency – even for shear-sensitive latex and solvent-based formulations.
Intelligent Gravimetric Control
High-Resolution Load Cells (0.01%): Auto-compensate for density shifts during filling (±0.25% accuracy).
Viscosity-Adaptive Pumping: Servo-driven gear pumps handle latex (5,000 cP) to epoxy putties (200,000 cP).
Operator-Safe Efficiency
Height-Adjustable Fill Head (600–1,200mm): Accommodates palletized containers.
Foot Pedal Activation: Hands-free operation + emergency stop (<0.5s response).
Hazardous Material Compliance
ATEX Zone 1/21 Option: Explosion-proof electronics for solvents (flash point <23°C).
StaticDissipate? System: Conductive nozzles (<10? Ω) + grounded clamps.
Zero-Waste Architecture
Drip-Free Shutoff: Vacuum suck-back reduces residue to <0.1%.
Overfill Safeguard: Auto-stop if weight deviation exceeds ±0.5%.
| Parameter | Specification |
|---|---|
| Model | GZ-SPF1100-Pro |
| Capacity | 10–50 kg (customizable to 60 kg) |
| Accuracy | ±0.25% (gravimetric) |
| Viscosity Range | 1–200,000 cP |
| Filling Rate | 12–18 containers/hour |
| Material Contact | 316L SS, PTFE, Halar? (pH 0.5–14 resistant) |
| Power | 380V/50Hz, 4.5 kW |
| Air Supply | 0.6 MPa, 0.3 m3/min |
| Container Types | Pails, drums, jerrycans (?250–500mm) |
| Footprint (L×W×H) | 2000 × 1100 × 2300 mm |
| Compliance | ATEX, CE, REACH, OSHA 1910.106 |
| Metric | GZ-SPF1100 Semi-Auto | Manual Process |
|---|---|---|
| Hourly Output | 18 containers | 3–4 containers |
| Labor | 1 operator | 3 operators |
| Material Waste | <0.1% | 4–15% |
| Spill Events | 0 | 3–7 daily |
| ROI Period | 6–9 months | N/A |
Paints/Latex: Nitrogen purge prevents skinning; anti-foam pulsed filling.
Solvent-Based Chemicals: Vapor recovery hood (95% VOC capture).
Epoxy Resins: Heated hopper (40–80°C) with dual-component metering option.
Acidic Liquids: Halar?-coated wetted parts for pH 0.5 resistance.
