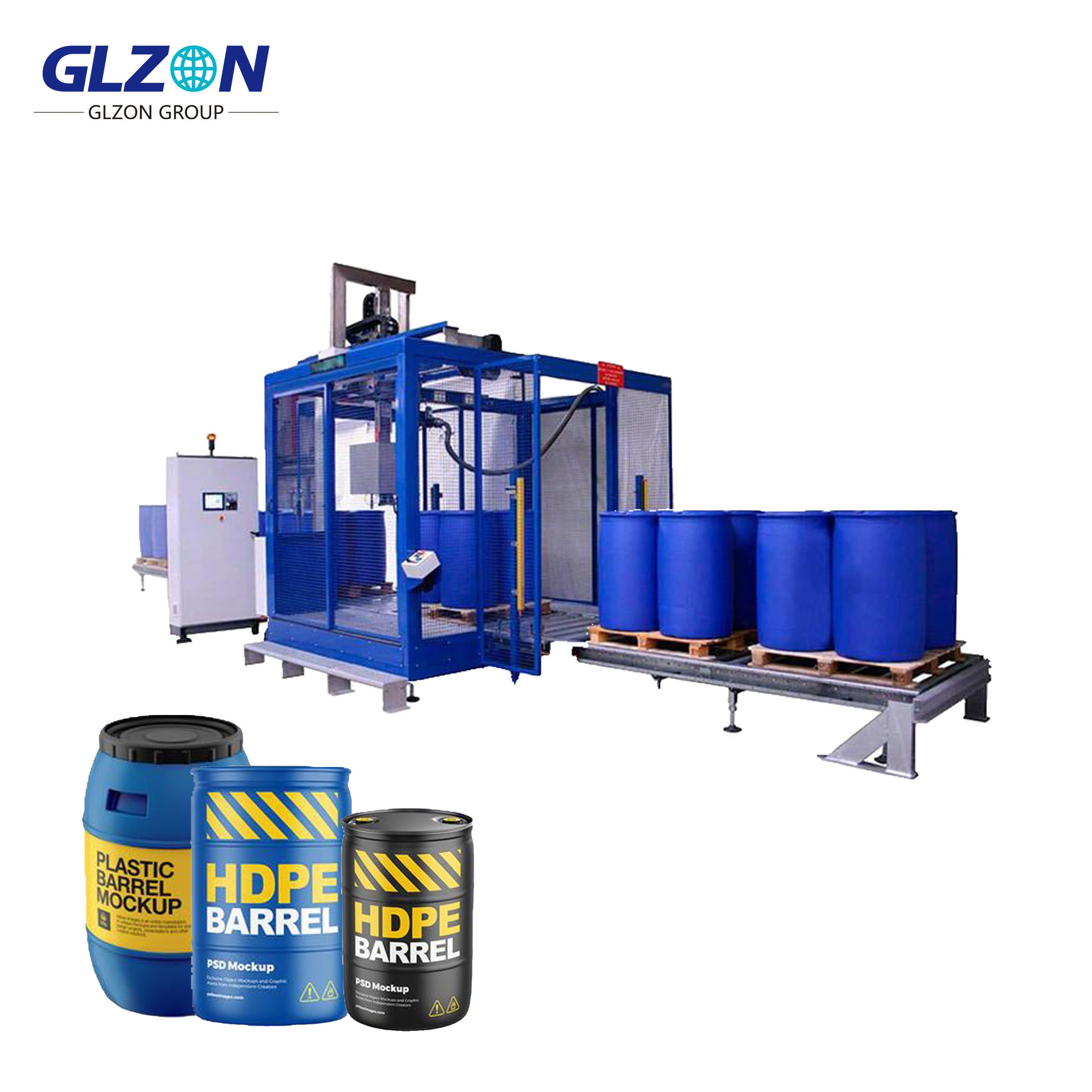

Drum & Tote Filling Machines Customizable for Any Fluid
Fully customizable filling systems for drums & totes: ±0.15% accuracy. Handles -196°C cryogenics to 2M cP pastes. ATEX Zone 0/FDA certified.
- Brand： glzon
- Model： GZM_200L
FluidMaster FMX Series
Customizable Drum & Tote Filling Machines
One Platform. Infinite Fluids. Precision Engineered.
Core Customization Matrix
Customization Tier | Fluid Compatibility | Key Technologies | Industry Targets |
|---|---|---|---|
Tier 1: Universal | Water to 500,000 cP oils | Adaptive Coriolis Meter | Chemicals, Lubricants, Food Oils |
Tier 2: Extreme | 1M cP pastes to LN? (-196°C) | Heated/Cryogenic Path | Petrochemicals, Cryogenics, Adhesives |
Tier 3: Hazardous | Flammables (FP <23°C), Acids (pH 0-14) | ATEX Zone 0 + Alloy C276 | Solvents, Battery Electrolytes, Pickling Acids |
Tier 4: Ultra-Pure | USP WFI, Pharma Buffers | 316L EP (Ra<0.2μm) + SIP | Biologics, Semiconductors, IV Fluids |
Technical Specifications
Parameter | FMX-100 (Standard) | FMX-200X (Hazardous) | FMX-300P (Pharma) |
|---|---|---|---|
Capacity | 20-1000L (±0.15%) | 20-1000L (±0.2%) | 20-1000L (±0.08%) |
Throughput | 30 Drums or 15 Totes/hour | 25 Drums or 12 Totes | 20 Drums or 10 Totes |
Viscosity Range | 1-2,000,000 cP | 1-500,000 cP | 1-50,000 cP |
Accuracy | ±0.15% gravimetric | ±0.2% | ±0.08% mass flow |
Material Contact | 316L SS + PTFE | Hastelloy C276 | 316L EP + PEEK |
Temp Range | -20°C to 150°C | -196°C to 200°C | 5°C to 80°C |
Flow Control | 8-stage adaptive PID | PulseFlow? Anti-Cavitation | Laminar Flow Mode |
Changeover Time | <10 min (Tool-Free) | <15 min | <20 min (CIP/SIP) |
Certifications | CE, ISO 9001 | ATEX Zone 0/1, SIL-3 | FDA cGMP, ASME BPE |
Modular Design Architecture
Build-Your-System Components:
Critical Modules:
Module | Function | Add-On Cost |
|---|---|---|
Viscosity Compensator | Real-time temp correction | $12,500 |
Vapor Recovery Hood | >99.9% VOC capture | $18,000 |
Aseptic Barrier | ISO Class 5 isolation | $42,000 |
Cryogenic Kit | -196°C LN? filling | $28,000 |
Industry-Specific Packages
Chemical Processing
Feature | Specification |
|---|---|
Alloy C276 Flow Path | HF Acid Resistance (48hr test) |
MIL-PRF-680 Corrosion | Salt Spray 1000hr Pass |
SIL-3 Safety | Dual redundant pressure sensors |
Food & Beverage
EHEDG-certified surfaces
3-A compliant seals
Allergen purge protocol:
? NaOH CIP → Rinse → Acid Wash → WFI Flush ? ATP <5 RLU validation
Pharmaceuticals
Validation Package | Compliance |
|---|---|
IQ/OQ/PQ | FDA 21 CFR Part 211 |
Leak Testing | HELCO <10?? mbar·L/s |
Material Certificates | USP Class VI, FDA 21 CFR 177 |
Smart Control Ecosystem
15" IIoT HMI with FluidOS?
AI-Driven Features:
Fluid Intelligence Engine:
Parameter
Control Precision
Density Variation
±0.1 kg/m3
Temp Drift
±0.3°C
Anomaly Response:
Risk
Action
Cavitation
Pressure adjustment
Crystallization
Auto path heating
Performance Guarantee
Shell Lubricants Validation:
*"Custom FMX-200X for gear oil (ISO 680):
Accuracy: ±0.18% at 150°C
Throughput: 28 drums/hour sustained
ROI: 7 months
Zero leaks in 12,000 fills"*
Certifications
? ATEX 2014/34/EU Cat.1 (Zone 0/1) ? FDA 21 CFR 177.2600 ? ISO 80079-36:2016 ? ASME BPE-2022 ? CE PED 2014/68/EU
Operational Economics
Metric | Conventional | FMX-100 | Savings |
|---|---|---|---|
Changeover Loss | 45 min/product | <10 min | ↓78% |
Fluid Waste | 2.8% | <0.1% | ↓96% |
Energy Use | 0.8 kWh/drum | 0.25 kWh/drum | ↓69% |
Compliance Costs | $45,000/year | $0 | 100% reduction |
APPLICABLE BARREL TYPE
