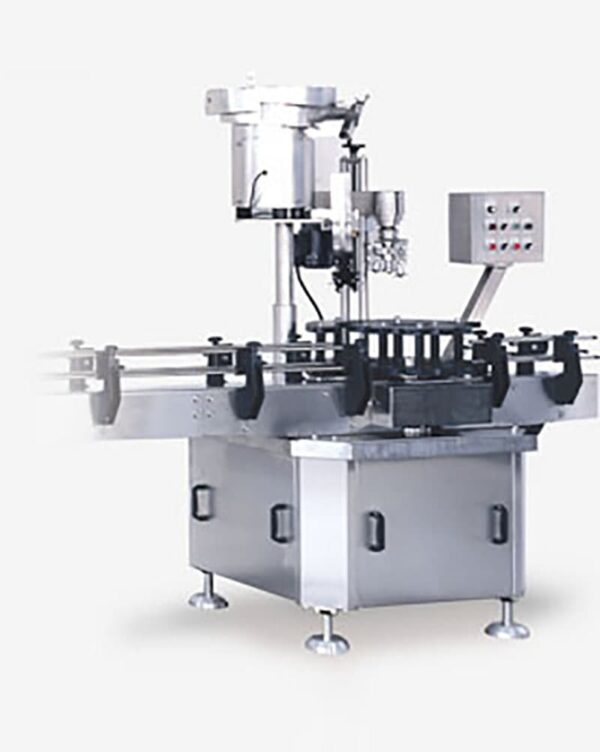

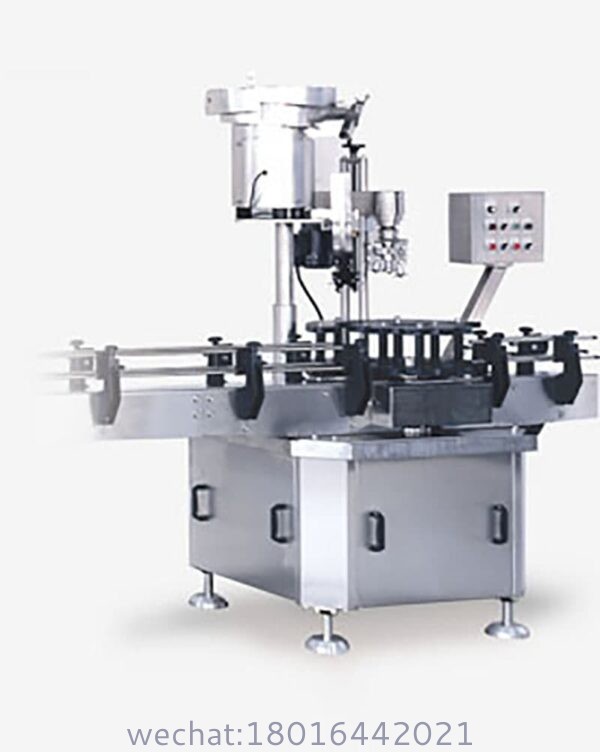

Automatic Rotary Capper
Guangzhi’s Automatic Rotary Capper: 120–200 containers/minute precision sealing. ±0.1mm alignment, ±1% torque control. FDA/CE/GMP certified. 90% labor savings.
- Brand： glzon
- Model： GZM-50V
Product Introduction: GZ-RC Series Automatic Rotary Capper
High-Volume Precision Capping for Continuous Production
Shanghai Guangzhi Automation’s GZ-RC Series Automatic Rotary Capper delivers unmatched efficiency for bottling lines, achieving 120+ containers/minute with ±0.1mm cap alignment accuracy. Designed for beverages, pharmaceuticals, and chemicals, this rotary system combines servo-driven torque control, AI vision inspection, and tool-free changeovers to eliminate leaks, reduce labor costs by 90%, and ensure 100% tamper-evident compliance in 24/7 operations.
Core Technologies
Rotary Turret System
16–24 station turret for continuous motion capping (zero indexing loss)
Cap handling: Screw-on, ROPP, snap-fit, press-on (5–80 mm ? caps)
AI Vision-Guided Positioning
10MP cameras scan cap/container alignment pre- and post-capping
Real-time rejection of misaligned caps (defect rate: <0.001%)
Precision Torque Control
Servo spindles with ±1% torque accuracy (0.2–50 N·m)
Auto-compensation for thread wear/tolerance variations
Hygienic Quick-Change Design
Tool-free cap chuck swap in <60 seconds
316L stainless steel/PEEK contact parts (FDA/EC1935)
IoT 4.0 Integration
12" HMI with OEE dashboards, torque analytics, and Guangzhi SmartCap OS for remote diagnostics
Technical Specifications
| Parameter | Standard Model | High-Speed Option |
|---|---|---|
| Throughput | 120 containers/minute | 200 containers/minute |
| Container Size | ?25–150mm; H50–400mm | ?20–100mm (PET/vials) |
| Cap Types | ROPP, screw, crown, pump | Child-resistant, flip-top |
| Torque Range | 0.5–40 N·m (±1%) | 0.2–30 N·m (±0.8%) |
| Power Supply | 380V/50Hz, 4.8 kW + 0.7 MPa air | |
| Changeover Time | <60 seconds | <45 seconds |
| Compliance | CE, ISO 9001, FDA 21 CFR | GMP Annex 1, EHEDG |
| Footprint (?×H) | ?2,400 × 1,800 mm |
Industry Applications
Beverage Production:
ROPP capping for wine/spirits (12–15 N·m)
Carbonation retention for soda/beer (torque accuracy ±0.5 N·m)
Pharmaceuticals:
Sterile lyophilized vial sealing (ISO Class 5 cleanroom compatible)
Nitrogen flushing for oxidizable drugs
Chemicals/Cosmetics:
Child-resistant closures for solvents
Pump dispenser installation for lotions
Food Packaging:
Hot-fill jar sealing with steam sterilization
Operational Advantages vs. Inline Cappers
| Metric | GZ-RC Rotary Capper | Inline Capper |
|---|---|---|
| Speed | 120–200 cpm | 40–80 cpm |
| Uptime | >99% (continuous motion) | 92–95% (indexing stops) |
| Container Handling | Gentle starwheel grip | Conveyor friction risk |
| Floor Space | 40% smaller footprint | Linear conveyor required |
| Energy Use | 25% lower (regenerative drives) | Standard consumption |
Safety & Customization
Standard Protection:
Laser safety curtains (ISO 13849-1 PLd)
Torque overload auto-reverse
|Cap jam detection with E-stopUpgrade Modules:
ATEX Package: Zone 1 explosion-proofing
Inert Gas Chamber: O? <50 ppm for pharma
Integrated Leak Tester: Pressure decay/vacuum testing
