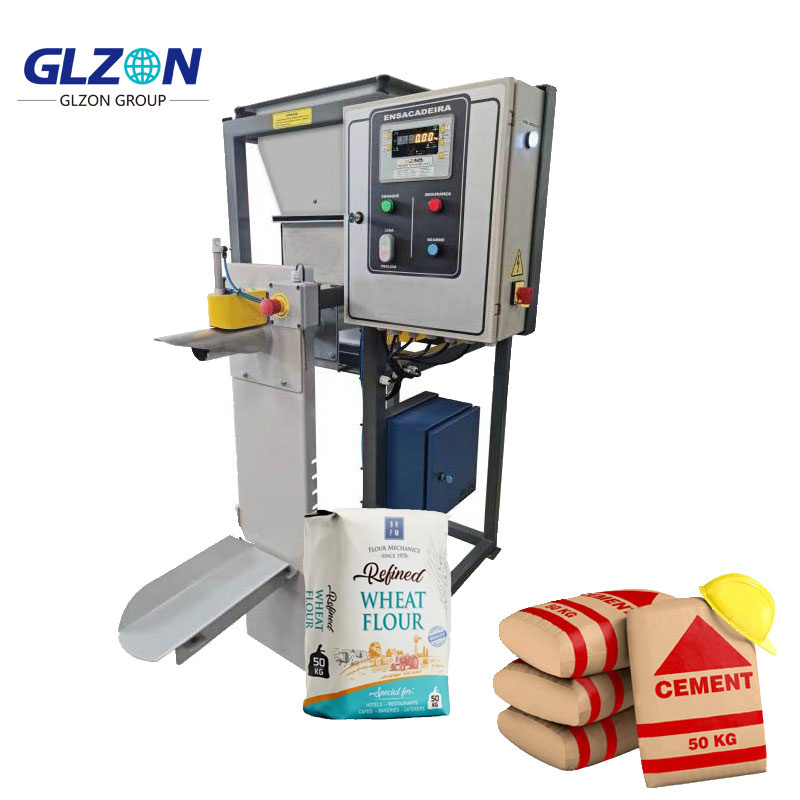

ValveMaster VM-5000 SeriesHigh-Speed Automated Valve Bag Filling SystemsPrecision Packaging for Powders & Granules at Industrial ScaleCore Technology Innovations1. VortexFill™ Impeller Filling Sys
High-Speed Automated Valve Bag Filling Systems
Precision Packaging for Powders & Granules at Industrial Scale
Revolutionary particle handling:
Zero Degradation: Shear-free design preserves material integrity
200kg/min Flow Rate: 3x faster than conventional auger systems
Self-Cleaning Blades: Tungsten carbide scrapers eliminate buildup
| Layer | Technology | Performance |
|---|---|---|
| Primary Barrier | -40Pa Vacuum Hood | Captures 98% fugitive dust |
| Secondary Filter | H14 HEPA (99.97%@0.3μm) | ISO Class 4 air quality |
| Tertiary Seal | Inflatable silicone collar | <1mg/m3 emission |
| Parameter | VM-5100 (Standard) | VM-5200X (ATEX) | VM-5300F (Food-Grade) |
|---|---|---|---|
| Bag Capacity | 25-50kg (±0.2%) | 25-50kg (±0.25%) | 25-50kg (±0.15%) |
| Throughput | 60 Bags/Hour | 55 Bags/Hour | 50 Bags/Hour |
| Filling Speed | 200kg/min | 180kg/min | 150kg/min |
| Material Compatibility | Cement ? Fly Ash ? Polymers ? TiO? ? Food Powders | Explosive Dusts (Kst<300 bar·m/s) | USDA Organic Compliant Materials |
| Valve Size Range | 40-120mm | 35-100mm | 30-80mm |
| Accuracy System | Redundant load cells + Air buoyancy compensation | Same + vibration compensation | AI density adaptation |
| Dust Emission | <5mg/m3 | <3mg/m3 | <1mg/m3 |
| Sealing Integrity | >90kPa burst pressure | >100kPa | >95kPa |
| Power Consumption | 18kW | 15kW | 12kW |
| Certifications | CE ? ISO 9001 | ATEX Zone 22 | FDA 21 CFR 117 |
| Component | Innovation | Performance Gain |
|---|---|---|
| Smart Valves | Laser-guided positioning | ±0.5mm alignment accuracy |
| Flow Control | Adaptive PID algorithms | Zero pulsation filling |
| Residual Control | Pneumatic purge + vacuum assist | <0.8g material loss |
Wear resistance comparison:
| Component | VM-5000 | Industry Standard |
|---|---|---|
| Impeller Blades | 2,200 Hv (50,000 bags) | 800 Hv (5,000 bags) |
| Valve Adapter | Alumina Ceramic (1,800 Hv) | 316 SS (Ra 1.6μm) |
1. Automatic bag spooling → 2. Valve sterilization (UV-C) → 3. Nitrogen purge (O?<0.5%) → 4. High-speed filling (18s/50kg) → 5. Dust extraction → 6. Seal verification → 7. Palletizing
Key Metrics:
Cycle Time: 48 seconds/bag
Uptime: 99.3% (IEC 61882 SIL-2)
Reject Rate: <0.05%
| Sector | Material Examples | Specialized Features |
|---|---|---|
| Cement | Portland ? Slag Cement | Abrasion-resistant tungsten carbide |
| Chemicals | TiO? ? Carbon Black | ATEX Zone 22 explosion protection |
| Food Processing | Flour ? Whey Powder | EHEDG EL Class I surfaces |
| Minerals | Talc ? Bentonite | Moisture control system (<0.1% RH) |
LafargeHolcim Implementation Report:
"After 12 months of VM-5100 operation:
Throughput: 28 → 60 Bags/Hour (+114%)
Material Savings: 3.2% → 0.18%
Dust Emissions: 22mg/m3 → 4.3mg/m3
Maintenance Cost: Reduced by 68%"
Unmatched Precision & Efficiency
? Gravimetric Excellence: - 0.05kg resolution load cells - Real-time air buoyancy compensation - ±0.2% bag-to-bag consistency ? Zero-Emission Design: 1. Negative pressure hood (-40Pa) 2. H14 HEPA filtration 3. Inflatable silicone valve seal ? Extreme Durability: - Tungsten carbide contact surfaces - IP69K washdown protection - 100,000-hour MTBF
