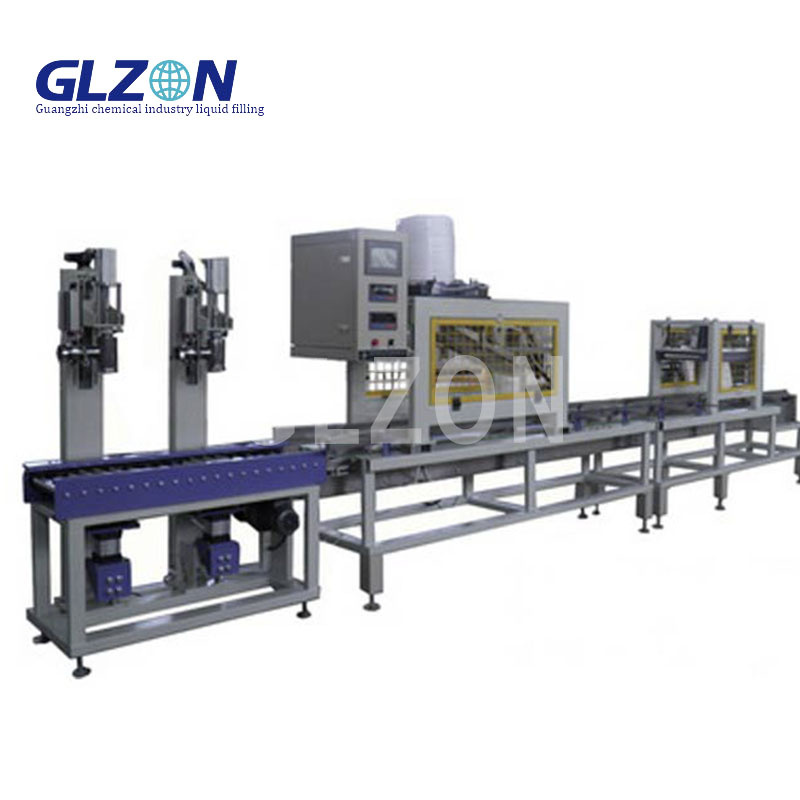

IronFill Pro IF-8000 Series5-25L Iron Drum Filling System for Latex Paint & Viscous LiquidsAnti-Foam • Zero-Residue • Heavy-Duty PerformanceTechnical SpecificationsParameterIF-8100 (Standard)IF-82
5-25L Iron Drum Filling System for Latex Paint & Viscous Liquids
Anti-Foam ? Zero-Residue ? Heavy-Duty Performance
| Parameter | IF-8100 (Standard) | IF-8200H (High-Visc) | IF-8300X (ATEX) |
|---|---|---|---|
| Capacity | 5-25L (±0.15%) | 5-25L (±0.18%) | 5-25L (±0.2%) |
| Throughput | 45 drums/hour | 40 drums/hour | 42 drums/hour |
| Accuracy | ±0.15% gravimetric | ±0.18% | ±0.2% |
| Viscosity Range | 100-500,000 cP | 5,000-2,000,000 cP | 100-300,000 cP |
| Filling Technology | Servo Piston + Mass Flow | Heated Screw Auger | ATEX Gear Pump |
| Foam Control | Vacuum Degassing (-0.8 bar) | Pulsed Flow + Ultrasonic | N? Blanketing |
| Residual Control | Air-Knife + Reverse Suction | Teflon Scraper System | Capillary Break Valve |
| Material Contact | Hardox 500 + PTFE Lined | Ceramic-Coated Screw | Hastelloy C276 |
| Drum Adaptability | 200-400mm Diameter Range | Same + Auto-Centering | Magnetic Clamp |
| Sealing System | Spring-Loaded Flange (IP66) | Same + O-Ring Seal | Explosion-Proof Seal |
| Power | 380V/50Hz, 4.2kW | 380V/50Hz, 5.5kW | 24VDC Ex ia |
| Clean Time | <8 min (CIP) | <10 min | <9 min |
| Certifications | CE, ISO 9001 | EHEDG Type EL-A | ATEX Zone 2 |
Performance Metrics:
| Material | Foam Reduction | Industry Standard |
|---|---|---|
| Latex Paint | 98.7% | 30-50% |
| PU Resin | 97.2% | 25-45% |
| Silicone Sealant | 99.1% | 35-60% |
| Feature | Technology | Performance |
|---|---|---|
| Self-Centering | Pneumatic Alignment Arms | ±0.5mm Position Accuracy |
| Corrosion Guard | Electrophoretic Coating | 1,000h Salt Spray (ISO 9227) |
| Zero Leakage | Double Lip Seal + Vapor Barrier | <0.01ml/min Leak Rate |
Architectural Coatings
| Challenge | Solution |
|---|---|
| Pigment Settling | Auto-Agitation During Fill |
| Skin Formation | N? Blanketing (O?<0.3%) |
| Color Consistency | In-line Viscosity Control (±3%) |
Industrial Adhesives
Stringing Prevention:
| Technology | Residual |
|---|---|
| Air-Knife Cutoff | <0.05ml |
| Reverse Suction | Zero Drips |
High-Build Filling:
| Parameter | Performance |
|---|---|
| Sag Control | Thixotropy-Adaptive Flow |
| Void Elimination | Vacuum-Assisted Filling |
Marine & Protective Coatings
| Component | Specification |
|---|---|
| Salt Spray Resistance | 316L SS Critical Parts |
| Abrasion Protection | Tungsten Carbide Nozzle |
| Anti-Corrosion | IPX9K Washdown Rating |
10" HMI with PaintOS?
AI-Driven Features:
SettleAlert?:
| Condition | Action |
|---|---|
| Density Shift >2% | Ultrasonic Homogenization |
| Temp Drop >3°C | Path Preheating |
Predictive Maintenance:
| Component | Alert Threshold |
|---|---|
| Seal Wear | Friction >8N |
| Screw Torque | >120% Baseline |
? ATEX 2014/34/EU (IF-8300X) ? CE EN 60204-1 ? ISO 9001:2015 ? EHEDG EL Class I (IF-8200H)
1. Iron Drum Loading → 2. Auto-Centering Clamp → 3. N? Purging (O?<0.3%) → 4. Vacuum Degassing → 5. Precision Filling (±0.15%) → 6. Teflon Scraper Retraction → 7. Lid Placement → 8. Torque Verification
Cycle Time: 80 seconds/drum
PPG Paints Case Study:
*"After 6 months using IF-8100 for latex paint:
Output: 25 → 45 drums/hour (+80%)
Paint Waste: 4.2% → 0.15%
Foam-Related Rejects: 12% → 0.3%
ROI: 5 months"*
