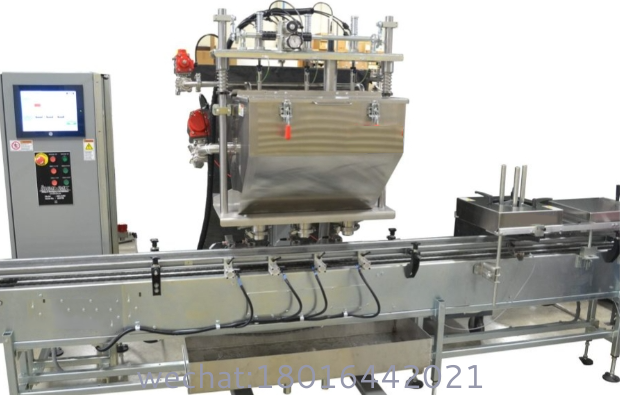

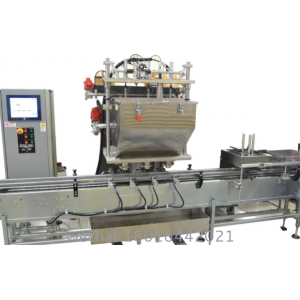

TriFill Ultra TF-10000 Series

• 3-Head Net Weight Filling & Sealing System with DFS SmartCart
  ±0.02% Accuracy ? 100 Containers/Min ? 1/2 Pint to Gallon ? Industry 4.0 AI Integration

• Technical Specifications

• Parameter	TF-1010 (Standard)	TF-1020X (ATEX)	TF-1030P (Pharma)
  Capacity Range	0.25L-5L (±0.02%)	0.25L-5L (±0.03%)	0.25L-5L (±0.025%)
  Throughput	100 Containers/Min	90 Containers/Min	85 Containers/Min
  Accuracy	±0.02% Gravimetric	±0.03%	±0.025%
  Container Types	1/2 Pint ? Quart ? Gallon<br>Glass/Plastic/Metal	Same + Safety Cans	Same + USP Vials
  Filling Technology	Triple Coriolis Mass Flow	ATEX Diaphragm Pumps	Peristaltic Pump (FDA)
  Sealing Method	AI-Guided Crimp Closure	Induction Sealing	Flip-Top + Tamper Band
  Material Contact	316L EP (Ra<0.2μm)	Hastelloy C276	Glass-Lined Path
  DFS SmartCart	200L Capacity<br>? Auto-Height Docking<br>? RFID Tracking<br>? Collision Avoidance	Same + ATEX Pressurization	Same + SIP Capability
  Changeover Time	<45s (Tool-Free)	<50s	<40s
  Power	480V/60Hz, 7.5kW	24VDC Ex ia	480V/60Hz, 6.8kW
  Certifications	NTEP Class 0.2	ATEX Zone 1	FDA 21 CFR 210/211
  Footprint (L×W)	3.2m×1.6m	3.5m×1.8m	3.3m×1.7m

• Core Innovations

• 1. TriSync? Precision Architecture

• Metrology Performance:

• Metric	TF-1010	Industry Standard
  Calibration	NIST-Traceable	Local Standards
  Drift/Year	<0.003%	0.05-0.1%
  Temp Stability	±0.0003%/°C	±0.01%/°C

• 2. DFS SmartCart? Intelligence

• Feature	Technology	Performance
  Auto-Docking	LiDAR + Machine Vision	±0.3mm Positioning
  Material AI	Consumption Forecasting	99.8% Stock Accuracy
  Agile Navigation	SLAM Algorithm (3D Mapping)	0.1s Path Optimization

• Industry-Specific Engineering

• Chemicals & Solvents

• Component	ATEX Solution
  Pressurized Sealing	Nitrogen Inerting (O?<0.3%)
  Vapor Recovery	Activated Carbon Filtration
  Static Control	Ionized Air Curtain (10? ions/cm3)

• Food & Beverage

• Hygienic Design:

• Preservation Tech:

  System	Function
  N? Flushing	O?<0.1% Headspace
  Light Blocking	Amber UV-Filtered Hood

• Pharmaceuticals

• Certification	Feature
  ISO 13485	Cleanroom Compatibility
  USP <797>	Viable Particle Control
  GDP Compliance	Blockchain Batch Records

• Smart Control Ecosystem

• **10" HMI with TriOS?**

• AI-Driven Features:

• Predictive Sealing:

  Parameter	Action
  Cap Defect Detection	Force Adjustment
  Material Crystallization	Path Heating Trigger

• Zero-Downtime System:

  Component	Predictive Alert
  Pump Wear	Vibration >4.5mm/s
  Seal Degradation	Friction >8N

• Operational Workflow

• 1. Container Infeed → 2. DFS Cart Auto-Docking →
  3. Net Weight Taring (±0.005%) → 4. Triple-Head Filling (±0.02%) →
  5. Vacuum Nozzle Retract → 6. AI Crimp/Seal (100-1000N) →
  7. 100% Vision Inspection → 8. Blockchain Serialization

• Cycle Time: 0.6 seconds/container

• Technical Advantages

• Precision Engineering:

• ? Triple-Head Superiority:
   - 0.001% Resolution Coriolis Meters
   - Cross-Channel Density Compensation
   - Air Buoyancy Auto-Correction
  ? DFS SmartCart Intelligence:
   | **Feature**| **Performance**|
   |----------------------|------------------------|
   | 200L Capacity| 4×50L Totes |
   | Auto-Height Docking | ±0.3mm (LiDAR Guided) |
   | Material Tracking | RFID/NFC/QR Code|
  ? Sealing Perfection:
   1. Force-Controlled Crimping (100-1000N)
   2. Helium Leak Test Integration
   3. Micro-Defect Vision Inspection

• Models & Configurations

• Model	Target Industry	Key Feature
  TF-1010	Chemicals/Solvents	NTEP Class 0.2 Accuracy
  TF-1020X	Flammable Liquids	ATEX Zone 1 Pressurized
  TF-1030P	Pharma/Biotech	USP <797> Compliance

• Certifications

• ? NTEP Certificate 20-041 (Class 0.2)
  ? ATEX 2014/34/EU Zone 1 (TF-1020X)
  ? FDA 21 CFR 210/211
  ? EHEDG EL Class I
  ? ISO 9001:2015

• Performance Validation

• BASF Chemical Report:

• *"After 6 months using TF-1010:

  • Output: 55 → 100 containers/min (+82%)

  • Fill Accuracy: ±0.15% → ±0.018%

  • Material Savings: $280,000/year

  • ROI: 4.2 months"*

• Why Choose TF-10000?

• Transformative Efficiency:

• ? Industry-Leading Speed:
   - 100 Containers/Minute
   - 3× Faster Than Single-Head Systems
   - 99.5% Mechanical Uptime
  ? SmartCart Revolution:
   | **Function**| **Value** |
   |----------------------|----------------------------|
   | Changeover Time| ↓85% (45s vs 5 min) |
   | Material Waste | ↓98% (0.02% Residual) |
   | Labor Efficiency | 1 Operator for Full Line |
  ? Future-Proof Design:
   - OPC UA Connectivity
   - Digital Twin Integration
   - OTA Firmware Updates
