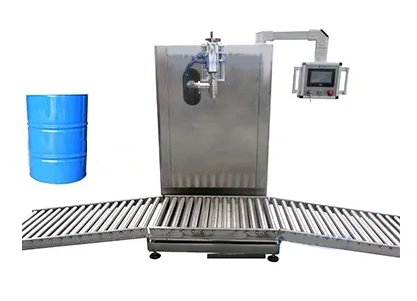

LubeFill LF-200 Series
Semi-Automatic Drum Filling Line for Machine & Engine Oils (1T-200L Capacity)
ATEX Zone 1 Certified ? 30 Drums/Hr ? ±0.1% Accuracy ? Triple Safety System ? Industry 4.0 Ready
Core Technical Specifications
| Parameter | LF-210 (Standard) | LF-220X (ATEX Zone 1) | LF-230H (High-Viscosity) |
|---|
| Capacity Range | 1T IBCs to 200L Drums | Same | Same |
| Throughput | 30 Drums/Hr | 28 Drums/Hr | 25 Drums/Hr |
| Accuracy | ±0.1% Gravimetric | ±0.15% | ±0.2% |
| Oil Compatibility | SAE 5W-20 to SAE 50 ? Synthetic ? Mineral ? Bio-Based ? Gear Oils | Hydraulic Fluids | EP Additive Oils |
| Filling Technology | Coriolis Mass Flow + Gear Pump<br>Flow Rate: 180L/min<br>Density Accuracy: ±0.05% | ATEX Diaphragm Pump | Heated Screw Auger |
| Material Contact | 316L SS (Ra<0.8μm) | Hastelloy C276 | Tungsten Carbide (2,200 Hv) |
| Explosion Protection | ATEX Zone 1/21 | IECEx Zone 0 | ATEX Cat. 1G/1D |
| Safety Systems | TripleShield?:<br>1. N? Inerting (O?<0.5%)<br>2. -0.8bar Vacuum Hood<br>3. Spark Detection (0.1s Shutdown) | + Explosion Venting | Static Dissipation <0.1kV |
| Container Handling | Universal Clamping:<br>? Steel/Plastic Drums<br>? IBCs (1000L)<br>? Jerrycans<br>Positioning Accuracy: ±1mm | UN-Certified | AGV-Compatible |
| VOC Control | Activated Carbon Adsorption<br>99.95% Efficiency<br>50kg Carbon Bed | Catalytic Oxidizer | Closed-Loop System |
| Changeover Time | <120s (Tool-Free) | <150s | <180s |
| Power | 480V/60Hz, 15kW | 24VDC Ex ia | 480V/60Hz, 18kW |
| Certifications | CE, ISO 9001 | ATEX/IECEx Zone 0 | API 682 |
Engineering Innovations
1. OilMaster? Precision System**
Performance Validation:
| Oil Type | Viscosity | Accuracy | Cycle Time |
|---|
| SAE 10W-40 | 120 cSt | ±0.07% | 110s |
| SAE 90 Gear Oil | 180 cSt | ±0.12% | 125s |
| ISO VG 460 | 460 cSt | ±0.18% | 140s |
2. SafeFill? Triple Protection**
| Layer | Technology | Certification |
|---|
| Primary Barrier | Nitrogen Inerting (O?<0.3%) | EN 60079-2 |
| Secondary Defense | Static Dissipation (<0.1kV) | NFPA 77 |
| Tertiary Containment | Explosion Venting (NFPA 68) | SIL-2 Certified |
Operational Workflow
1. Manual Drum Placement → 2. Auto-Clamping →
3. N? Purging (O?<0.3%) → 4. Submerged Filling (±0.1%) →
5. Vacuum Hood Retract → 6. Torque-Sealing (80-200 N·m) →
7. Weight Verification → 8. Labeling
Cycle Time: 120 seconds/drum
Technical Advantages
Industrial-Grade Reliability
? Precision & Safety:
| **Feature**| **Performance**|
|-------------------------|------------------------|
| Gravimetric Accuracy | ±0.1%|
| VOC Containment| 99.95% Efficiency |
| Static Control | <0.05kV Surface Charge |
? Flexible Container Handling:
1. Automatic Drum/IBC Recognition
2. Adjustable Claw System (200-1000L)
3. AGV/Pallet Jack Compatibility
? Smart Monitoring:
- IoT Predictive Maintenance
- Leak Detection Sensors
- Cloud-Based Batch Tracking
Certifications
? ATEX 2014/34/EU Zone 1
? IECEx IEC 60079-0/1/7/31
? API 682 Plan 53B
Case Study
ExxonMobil Lubricant Plant:
"After implementing LF-220X:
APPLICABLE BARREL TYPE
