1. This machine is a semi-automatic piston type, with a reasonable design, compact model, and convenient operation;2. The material contact part is made of 316L stainless steel material, which meets GM
AquaFill Pro? Series

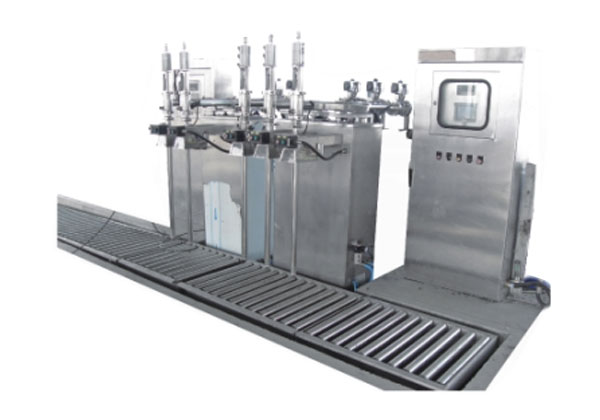

200L Multi-Gun Water-Based Paint Filling System
Precision Filling | Zero Contamination | Explosion-Safe Operation
Parameter | A-300 (Compact) | A-310E (ATEX Zone 1) | A-350S (Sterile Grade) |
|---|---|---|---|
Capacity | 20-220L (±0.2%) | 20-220L (±0.3%) | 20-220L (±0.15%) |
Throughput | 38 Drums/hour | 35 Drums/hour | 30 Drums/hour |
Gun Configuration | 4 guns (auto-swivel) | 6 guns (IP66) | 3 guns (316L SS isolator) |
Viscosity Range | 500-15,000 cP | 500-12,000 cP | 300-10,000 cP |
Accuracy | ±0.2% mass flow | ±0.3% | ±0.15% |
Drip Prevention | Nano-coating nozzles | Electrostatic control | Vacuum retract + rinse |
Material Contact | PTFE/PFA lined | 316L SS | EPDM-free w/ mirror finish |
Changeover Time | <5 min (color) | <8 min | <3 min (CIP) |
Air Consumption | 100 L/min @0.5MPa | 120 L/min | 80 L/min |
Power | 24VDC, 1.5kW | ATEX IIB T4 230VAC | 24VDC, 2.2kW |
Key Innovations:
MicroPulse? Gun Control:
1ms cut-off response time
0.1μL residual drop
OptiClean? Rinse System:
Rinse Mode | Time | Solvent Use |
|---|---|---|
Standard Color Change | 90s | 400mL |
White to Black | 150s | 600mL |
Architectural Coatings
Feature | Performance |
|---|---|
Automated Viscosity Adjustment | ±5% batch variation compensation |
Pigment Suspension | 200 rpm inline agitator |
Automotive OEM Paint
ISO 8 cleanroom compatibility
<5μm particle filtration
O2 level monitoring (<18% LEL)
Marine & Protective Coatings
Challenge | Solution |
|---|---|
High-Fillers (TiO?) | Anti-settling recirculation loop |
Zinc Epoxies | Ceramic-coated contact parts |
10.1" ColorGuard? HMI
Live Contamination Monitoring:
Production Analytics:
Metric | Tracking Capability |
|---|---|
Material Usage | ±0.1% per batch |
Viscosity Drift | Auto-correction every 3L |
Waste Calculation | Solvent/Overfill tracking |
Explosion Protection (A-310E Model)
? ATEX II 1G Ex db ib mb IIB T4 ? NFPA 33 Spark Detection ? Inert Gas Blanketing (N?) ? Grounding Resistance <10? Ω
Hygienic Design (A-350S Model)
? EHEDG EL Class 1 Certified ? 3-A Sanitary Standards ? 0.4μm Ra Surface Finish ? Clean-in-Place (CIP) Cycle: <3min
AkzoNobel Production Report:
*“After deploying A-310E for water-based primers:
Throughput: 22 → 35 drums/hour (+59%)
Color Change Waste: 18L → 2.5L/day
Solvent Savings: $46,000/year
VOC Emission: 98% reduction”*
Model | Base Price | Add-Ons |
|---|---|---|
A-300 | $68,500 | CIP Kit: +$12,000 |
A-310E | $142,000 | Nitrogen Blanket: +$18,500 |
A-350S | $185,000 | Isolator Chamber: +$32,000 |
ROI Calculator:
? Savings/Batch: - Material: $380 (reduced overfill) - Labor: 2.7h saved/day - Waste Treatment: $18/drum eliminated ? ROI: 8-14 months for 3-shift operations
Service | Standard | Gold Package |
|---|---|---|
Commissioning | 3 days FAT + SAT | GMP Validation (IQ/OQ/PQ) |
Training | 16-hr operator certification | OEE Optimization Coaching |
Uptime Guarantee | 97% | 99.5% with remote monitoring |
Response Time | 24h critical support | 4h on-site (global) |
Zero-Compromise Paint Filling
The AquaFill Pro Series combines aerospace-grade fluid dynamics with pharmaceutical-grade cleanability – achieving 0.15% accuracy in water-based paint filling while eliminating cross-contamination.
Limited-Time Offers:
? Free Validation Kit: Pre-FAT compatibility testing
? Trade-In Program: 15% credit for old equipment
? Consumables Package: 1 year of filters/nozzles
“0% color cross-contact in 12,000 drum fills”
— SGS Report #AF2024-WP-553
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.
Company Certificate
Our office and workshop
Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
This is a partial
service for us
in China.
Over 30 years of experience, every time we produce in
Shanghai, our friends can visit our factory at any time.
Brand components
We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.
Our service
Complete solution provided
Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.
Duty after death
Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.
Technology group
We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.
Successful collaboration
Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.
packge and delivery
Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
