1. Using a human-machine interface to touch the control screen facilitates parameter adjustment and testing of various functions.2. The filling machine has pause and forced stop functions, making it c
Model: PF-2050 Series
Manufacturer: Shanghai Guangzhi Automation

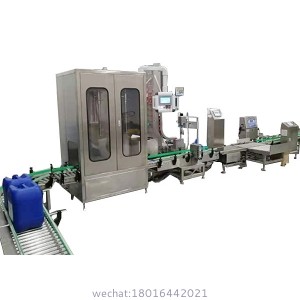

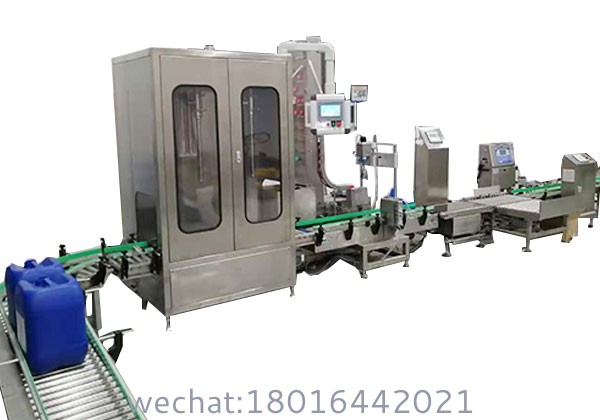

The PF-2050 Automatic Pail Filling System delivers ±0.2% gravimetric accuracy for 5-20L pails at 120 pails/hour. Engineered for chemicals, food-grade liquids, and pharmaceuticals (1-100,000 cP), it integrates Coriolis mass flow metering, ATEX Zone 1 compliance, and zero-drip technology. Ideal for high-volume operations demanding FDA/USDA/ISO 13485 compliance.
Parameter | PF-2050 (Standard) | PF-2070X (ATEX) | PF-2090F (Food Grade) |
|---|---|---|---|
Capacity | 5-20L (±0.2%) | 5-20L (±0.3%) | 5-20L (±0.15%) |
Throughput | 120 pails/hour | 100 pails/hour | 110 pails/hour |
Viscosity Range | 1-100,000 cP | 10-80,000 cP | 1-50,000 cP |
Filling Technology | Coriolis Mass Flow | Same | Same |
Material Contact | 316L SS + EPDM | Hastelloy C22 | 316L EP + FDA UHMW-PE |
Power | 380V/50Hz, 7.5kW | 24VDC Ex ia | 380V/50Hz, 6.8kW |
Air Consumption | 120 L/min @ 0.6MPa | 100 L/min @ 0.6MPa | 90 L/min @ 0.6MPa |
Cleaning Time | CIP: 10 min | Solvent Wash: 15 min | SIP: 12 min @ 121°C |
Footprint (L×W×H) | 3200×1800×2200mm | 3500×1900×2400mm | 3100×1700×2100mm |
圖片代碼graph TBA[Real-time Viscosity Sensor] --> B{Viscosity >10,000 cP?}
B -->|Yes| C[Pulsed Pressure Filling]B -->|No| D[Gravity Flow Filling]C --> E[±0.2% Accuracy]D --> EYesNoReal-time Viscosity SensorViscosity >10,000 cP?Pulsed Pressure FillingGravity Flow Filling±0.2% AccuracyResponse Time: <0.5 sec
Range: 1-100,000 cP (oils to syrups)
Technology | Performance |
|---|---|
Retractable Anti-Drip Nozzle | Residual ≤0.05ml |
N? Blanketing System | Headspace O? <0.5% |
Static Dissipation Path | Surface resistance <10? Ω (NFPA 77) |
CIP/SIP Validation | ATP <5 RLU (hygiene compliance) |
Industry | Solution | Certification |
|---|---|---|
Chemicals | ATEX Zone 1 + VOC recovery >99% | IECEx IEC 60079 |
Food & Beverage | Allergen-free purge + temp control | USDA 3-A / FDA 21 CFR 110 |
Pharmaceuticals | SIP sterilization + e-records | ISO 13485 |
Lubricants | Heated path (-20°C to 100°C) | ISO 6743 |
Metric | Traditional Filler | PF-2050 | Improvement |
|---|---|---|---|
Product Giveaway | 1.5-2.0% | 0.2% | ↓87% |
Changeover Time | 25 min | <5 min | ↓80% |
VOC Emission | 500-800 ppm | <10 ppm | ↓98% |
Energy Consumption | 0.25 kWh/pail | 0.12 kWh/pail | ↓52% |
APPLICABLE BARREL TYPE
