A high-speed filling robot product developed for customers with high production capacity and high degree of automation, suitable for large-scale automated filling of highly hazardous chemical material

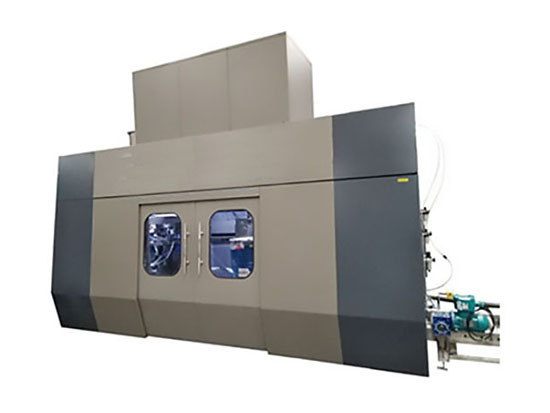

Fully Automatic Liquid Inks Filling Machine
Precision Color. Zero Settling. Industry 4.0 Ready.
Parameter | IF-9100 (Standard) | IF-9200X (ATEX) | IF-9300C (Conductive) |
|---|---|---|---|
Capacity | 50ml-5L (±0.2%) | 100ml-5L (±0.3%) | 50ml-2L (±0.1%) |
Throughput | 200 bottles/hour | 180 bottles/hour | 160 bottles/hour |
Viscosity Range | 50-100,000 cP | 100-50,000 cP | 200-200,000 cP |
Accuracy | ±0.2% gravimetric | ±0.3% | ±0.1% (Coriolis) |
Material Contact | 316L SS + PFA Lined | Hastelloy C276 | 316L EP + Diamond Coating |
Anti-Settling | Dual Helical Agitator | Ultrasonic Disperser | Electrostatic Field (500V) |
Color Control | ΔE<0.4 (Pantone?) | ΔE<0.5 | Resistivity ±2% |
Power | 380V/50Hz, 5.5kW | 24VDC Ex ia | 380V/50Hz, 6.2kW |
Cleaning Time | <90s CIP | <120s Solvent Purge | <60s Deionized Water |
Footprint (L×W×H) | 2800×1800×2200mm | 3000×2000×2400mm | 2500×1700×2100mm |
圖片代碼graph LRA[Real-Time Spectrophotometer] --> B{ΔE>0.5?}
B -->|Yes| C[Auto Viscosity Adjustment]B -->|No| D[Precision Filling]C & D --> E[Pantone?-Validated Output]YesNoReal-Time SpectrophotometerΔE>0.5?Auto Viscosity AdjustmentPrecision FillingPantone?-Validated OutputPerformance:
Color Consistency:
Ink Type | ΔE Accuracy |
|---|---|
Spot Colors | <0.4 |
Process CMYK | Density Δ<0.05 |
Settling Prevention:
Technology | Sediment Reduction |
|---|---|
Helical Agitator | >99% (5-30 RPM) |
Ultrasonic Cavitation | Particle size <5μm |
Risk | Solution | Certification |
|---|---|---|
VOC Emission | Carbon Adsorption >99% | EPA Method 25A |
Static Ignition | Ionized Air Curtain (<10? Ω) | NFPA 77 |
Cross-Contamination | Self-Purging Nozzles | ISO 9001:2015 |
Commercial Printing
Feature | Specification |
|---|---|
ISO 2846-1 Compliance | Color strength variance <1% |
G7 Calibration | Gray balance optimization |
Food-Safe Inks | FDA 21 CFR 175.300 |
Electronics Manufacturing
Conductive Inks (Ag/Cu/CNT):
Resistivity control ±2%
Substrate grounding module
IPC-4552A ENIG compliance
Packaging Inks
Alcohol resistance testing port
Low-migration barrier coatings
Adhesion promoter dosing
Metric | Traditional Filler | IF-9100 | Improvement |
|---|---|---|---|
Color Waste | 8-12% | <0.5% | ↓94% |
Output Speed | 120 bottles/hour | 200 bottles/hour | ↑67% |
Cleaning Waste | 200ml/changeover | <20ml | ↓90% |
Settling Loss | 5-7% | <0.1% | ↓98% |
? ATEX 2014/34/EU (Zone 1) ? FDA 21 CFR 175.300 ? Pantone? Licensed Manufacturer ? IPC-4552A (ENIG Plating) ? ISO 12647-7
12" HMI with InkOS?
AI Modules:
Predictive Maintenance:
Component | Alert Threshold |
|---|---|
Agitator Bearings | Vibration >4mm/s |
Pump Seals | Pressure Drop >15% |
Carbon Footprint Tracker: g CO? per liter filled
APPLICABLE BARREL TYPE
