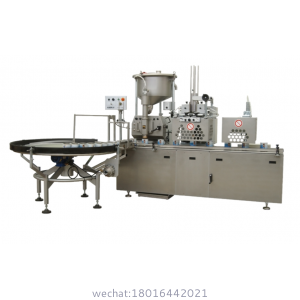

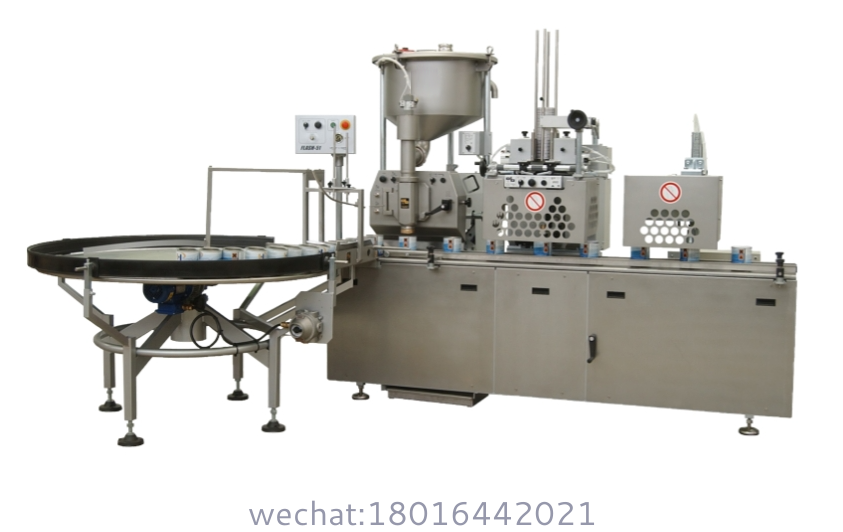

Automatic line characterized by its versatility in performance for all kinds of cans from 50 to 250 mm diameter.For dosing products of low and medium viscosity from 0.1 up to 5 litres per stroke.Direc
Universal Liquid Can Filling System
±0.1% Accuracy ? 60 Cans/Hour ? ATEX Certified ? 10s Changeover
| Parameter | LF-9100 (Standard) | LF-9200X (ATEX) | LF-9300H (High-Visc) |
|---|---|---|---|
| Capacity | 250ml-20L (±0.1%) | 250ml-20L (±0.15%) | 250ml-20L (±0.12%) |
| Throughput | 60 cans/hour | 55 cans/hour | 50 cans/hour |
| Accuracy | ±0.1% gravimetric | ±0.15% | ±0.12% |
| Viscosity Range | 1-500,000 cP | 5-300,000 cP | 50-1,000,000 cP |
| Filling Technology | Servo Piston + Coriolis Meter | ATEX Diaphragm Pump | Heated Screw Auger |
| Material Contact | 316L SS (Ra<0.8μm) | Hastelloy C276 | Ceramic-Coated Path |
| Drip Control | Air-Knife + Vacuum Suction | Spring-Loaded Retract | Capillary Break Valve |
| Changeover Time | <10s (No Tools) | <12s | <8s |
| Container Types | Aerosol Cans ? Jerricans ? Pails | Same + Safety Cans | Same + Composite Drums |
| Sealing Options | Snap Caps ? Screw Lids ? Crimp Seals | Same + ROPP | Induction Sealing |
| Power | 220V/50Hz, 2.5kW | 24VDC Ex ia | 220V/50Hz, 3.8kW |
| Air Consumption | 200 L/min @ 0.6MPa | 180 L/min | 220 L/min |
| Certifications | CE, ISO 9001 | ATEX Zone 2 | FDA 21 CFR 177.2600 |
| Footprint (L×W×H) | 1800×1200×2200mm | 2000×1400×2400mm | 1900×1300×2300mm |
Changeover Performance:
| Parameter | LF-9100 | Industry Average |
|---|---|---|
| Size Change | 8s | 45-90s |
| Material Change | 15s | 30-60min |
| Seal Type Swap | 12s | 20-40min |
| Viscosity | Filling Mode | Flow Rate | Precision |
|---|---|---|---|
| <100 cP | High-Speed Jet (1.5L/s) | ±0.05% | |
| 100-10k cP | Pulsed Piston (0.8L/s) | ±0.1% | |
| >10k cP | Laminar Screw (0.4L/s) | ±0.15% |
Chemicals & Solvents
| Feature | Specification |
|---|---|
| ATEX Zone 2 | Pressurized Cabinets (+50Pa) |
| VOC Control | >99.9% Carbon Adsorption |
| Corrosion Proof | Zirconium Flow Path |
Food & Beverage
EHEDG-Validated:
| Component | Certification |
|---|---|
| Surface Finish | Ra<0.4μm (EHEDG Doc.8) |
| Drainability | 3° Slope (ASME BPE) |
Allergen Control:
Cosmetics & Pharma
| Challenge | Solution |
|---|---|
| Foam Formation | Vacuum Degassing (-0.8 bar) |
| Stringing | Laser Cutoff + Reverse Suction |
| Sterility | SIP @ 121°C (30 min) |
10" HMI with FillOS?
AI-Driven Features:
Predictive Maintenance:
| Component | Alert Threshold |
|---|---|
| Seal Wear | Friction >8N |
| Valve Cycles | >500,000 |
Anomaly Detection:
| Fault | Resolution |
|---|---|
| Overfill Risk | Flow Reduction |
| Leak Detection | Auto Shutdown |
? ATEX 2014/34/EU (LF-9200X) ? FDA 21 CFR 175.300 ? EHEDG EL Class I ? CE EN 60204-1
Unilever Case Study:
*"After 6 months using LF-9100:
Output: 35 → 60 cans/hour (+71%)
Accuracy: ±1.2% → ±0.08%
Product Loss: 4.5% → 0.15%
ROI: 4 months"*
