Functional features:Product Settings - Store weight settings and related filling parameters for 20 different products, easy to operate and learnMulti stage filling - can be divided into two stages (fa

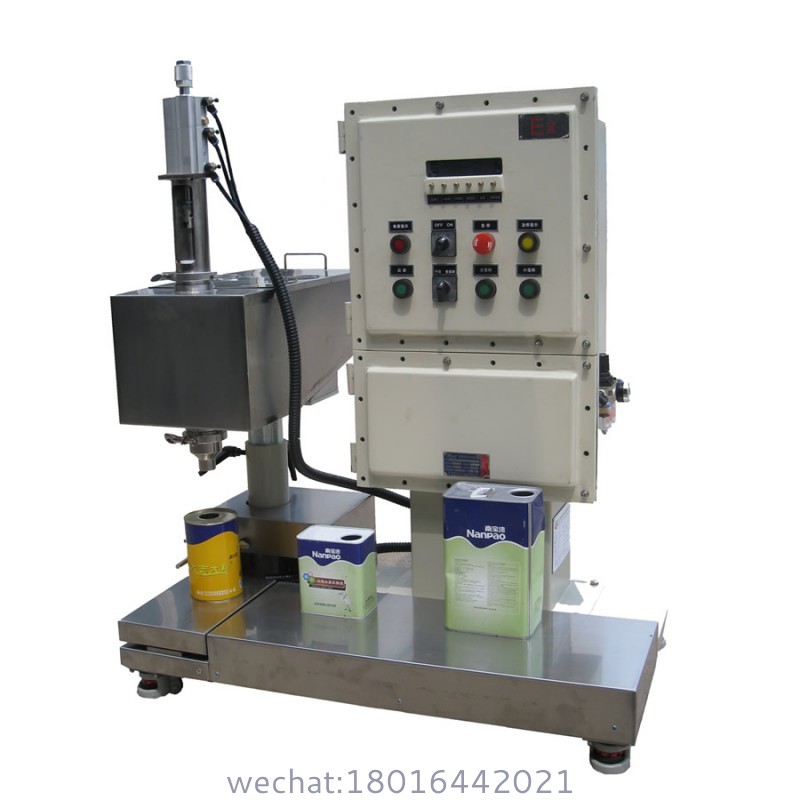

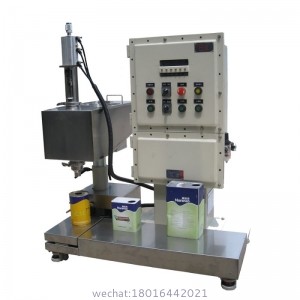

Precision 5L Liquid Ink Filling System
±0.08% Accuracy ? Bubble-Free ? Cross-Contamination Defense
| Parameter | IP-5100 (Standard) | IP-5200X (ATEX) | IP-5300E (Electronics Grade) |
|---|---|---|---|
| Capacity | 4.8-5.2L (±0.08%) | 4.8-5.2L (±0.1%) | 4.8-5.2L (±0.05%) |
| Throughput | 55 cans/hour | 50 cans/hour | 48 cans/hour |
| Accuracy | ±0.08% gravimetric | ±0.1% | ±0.05% |
| Viscosity Range | 10-500,000 cP | 50-300,000 cP | 5-50,000 cP |
| Filling Technology | Servo Piston + Mass Flow | ATEX Diaphragm Pump | Peristaltic Pump (PFA Lined) |
| Bubble Control | Vacuum Degassing (-0.8 bar) | Ultrasonic Cavitation | Laminar Flow + Pressure Cycling |
| Material Contact | 316L SS + PTFE | Hastelloy C276 | 316L EP (Ra<0.2μm) + PFA |
| Oxygen Barrier | N? Blanketing (O?<0.3%) | Same + O? Scavenger | Argon Purging (O?<0.1%) |
| Particle Control | ISO Class 6 | ISO Class 5 | ISO Class 3 (≥0.5μm) |
| Changeover Time | <45s (CIP Ready) | <50s | <40s (SIP Compatible) |
| Power | 220V/50Hz, 1.8kW | 24VDC Ex ia | 220V/50Hz, 1.5kW |
| Metal Ion Control | <1 ppm | <0.5 ppm | <10 ppb (Fe, Na, Cu) |
| Moisture Control | <100 ppm H?O | <50 ppm | <10 ppm (Karl Fischer) |
| Footprint (L×W×H) | 1600×1200×2000mm | 1800×1400×2200mm | 1700×1300×2100mm |
Performance Metrics:
| Ink Type | Bubble Reduction | Technology |
|---|---|---|
| Water-Based Flexo | 99.2% | Laminar Flow Nozzle |
| UV-Curable | 98.5% | Amber Light Filtration |
| Conductive Ink | 99.8% | Static-Dissipative Path |
| Layer | Technology | Performance |
|---|---|---|
| Metal Ions | Chelating Agent Injection | <10 ppb Residual |
| Dust | HEPA Filtration (ISO Class 3) | >99.99% @ 0.3μm |
| Cross-Color | 3-Step Solvent Flush | <1ppm Residual Colorant |
Digital Printing Inks
| Feature | Specification |
|---|---|
| Viscosity Stability | ±1% (ASTM D2196) |
| Color Consistency | ΔE<0.4 (ISO 2846-1) |
| Fast Drying Support | IR Path Heating (60°C) |
Electronics Functional Inks
Resistivity Control:
| Parameter | Precision |
|---|---|
| Conductive Inks | ±0.5% Ω/sq |
| Dielectric Inks | ±1% Dk/Df |
Static Protection:
Ionized Air Curtain (<10? Ω)
Grounding Verification (<5Ω)
Packaging Inks
| Component | Certification |
|---|---|
| Food Contact | FDA 21 CFR 175.300 |
| Migration Limits | EUPIA/ Swiss Ordinance |
| Allergen Control | Dedicated Fluid Paths |
7" HMI with InkOS?
AI-Driven Features:
Clog Prevention AI:
| Risk Factor | Preventive Action |
|---|---|
| Viscosity Spike | Solvent Pulse Flush |
| Temp Drop >2°C | Path Preheating |
Color Shift Alert:
| Anomaly | Resolution |
|---|---|
| ΔE>0.5 | Auto Flow Adjustment |
| Pigment Settling | Ultrasonic Agitation |
? ATEX 2014/34/EU (IP-5200X) ? FDA 21 CFR 175.300 ? ISO 9001:2015 ? IECQ QC 080000 (IP-5300E) ? RoHS/REACH
1. AGV Can Loading → 2. N? Purging (O?<0.3%) → 3. Viscosity-Temp Scan → 4. Precision Filling (±0.08%) → 5. Ultrasonic Bubble Disruption → 6. Capillary Drip Cut → 7. Torque-Controlled Sealing → 8. Metal Ion Scan
Cycle Time: 65 seconds/can
DIC Corporation Case Study:
*"After 8 months using IP-5300E for conductive ink:
Output: 30 → 48 cans/hour (+60%)
Resistivity Variance: ±8% → ±0.4%
Metal Contamination: 120ppb → <5ppb
ROI: 6 months"*
