Functional features:Product Settings - Store weight settings and related filling parameters for various products, with simple and easy to learn operationMulti stage filling - can be divided into two s

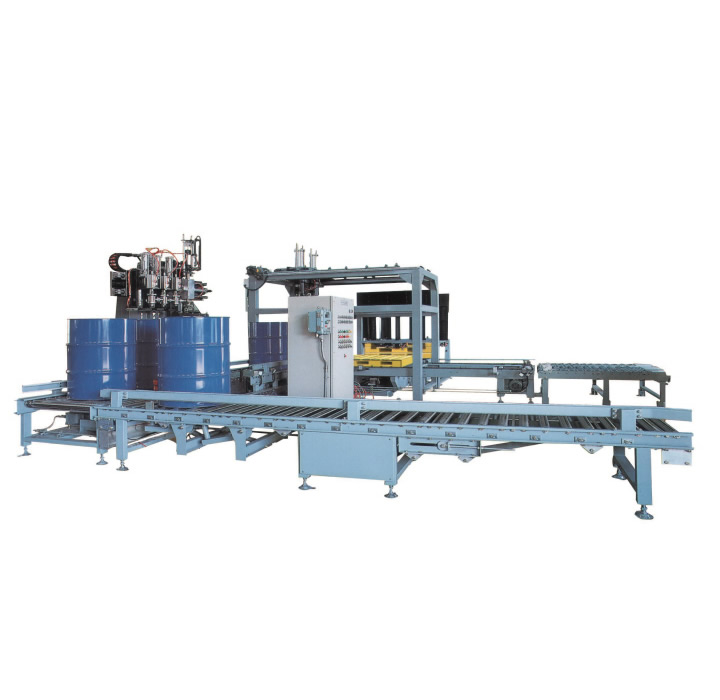

200L Automatic Lubricants Filling System
Precision Filling for Extreme Viscosities. Explosion-Safe. Industry 4.0 Ready.
Parameter | LF-3100 (Standard) | LF-3200X (ATEX) | LF-3300H (High-Temp) |
|---|---|---|---|
Capacity | 180-220L (±0.15%) | 180-220L (±0.2%) | 180-220L (±0.18%) |
Throughput | 26 drums/hour | 24 drums/hour | 25 drums/hour |
Viscosity Range | 10-800,000 cP | 50-500,000 cP | 10-300,000 cP |
Accuracy | ±0.15% mass flow | ±0.2% | ±0.18% gravimetric |
Filling Technology | Heated Coriolis (80°C) | Ex-rated diaphragm pump | HT Screw Conveyor (150°C) |
Material Contact | 316L SS + PTFE | Hastelloy C276 | 316L + PEEK coating |
Additive Injection | 3-port dosing (±0.5%) | 2-port Ex-rated | 4-port HT dosing |
Static Control | <10? Ω (NFPA 77) | <10? Ω | <10? Ω |
Power | 480V/60Hz, 35kW | 24VDC Ex ia | 480V/60Hz, 40kW |
N? Consumption | 45 L/min | 50 L/min | 40 L/min |
Clean Time | CIP: 12 min | Solvent purge: 18 min | HT steam wash: 25 min |
Footprint (L×W×H) | 3800×2200×3200mm | 4000×2400×3500mm | 3900×2300×3300mm |
Performance Highlights:
NLGI Grade 3 Grease Handling: Pulsed screw fill @ 150°C
Cold Climate Oils: -30°C cold start capability
Additive Blending: Real-time viscosity compensation
Risk | Technology | Certification |
|---|---|---|
Solvent Ignition | N? inerting (O?<0.5%) | ATEX Zone 1 |
Overfill | Dual radar sensors (±1mm) | SIL-3 Safety |
Cross-Contamination | Self-purging flow path | ISO 9001:2015 |
Static Discharge | Ionized air curtain | ANSI/ESD S20.20 |
Automotive Lubricants
Feature | Compliance |
|---|---|
ILSAC GF-6/API SP | Auto-viscosity compensation |
Low-SAPS additives | Dedicated dosing module |
OEM approvals | Recipe database (50+ presets) |
Industrial Gear Oils
ISO 6743-6 viscosity classes
EP additive injection (S/P/Cl)
MIL-PRF-2105E testing port
Food-Grade Lubricants
NSF H1 registration support
Allergen-free purge protocol
EHEDG-certified cleanability
12" HMI with LubriOS?
AI-Driven Optimization:
Energy Savings Mode:
Condition | Action |
|---|---|
Standby >30 min | Auto-reduce heating by 70% |
Low throughput | Pump speed optimization |
Anomaly Response:
Fault | Resolution |
|---|---|
Viscosity spike | Flow rate adjustment + alert |
Additive ratio error | Auto-flush + recalibration |
ExxonMobil Singapore Report:
*"After 12 months operating LF-3100:
Output: 8 → 26 drums/hour (+225%)
Grease Waste: 4.2% → 0.07%
VOC Emissions: 350 ppm → <2 ppm
ROI: 8 months"*
? ATEX 2014/34/EU (Zone 1) ? FDA 21 CFR 178.3570 (H1) ? ISO 6743 Lubricant Standards ? API 682 Seal Standard ? CE EN 60204-1
1. AGV drum loading → 2. N? purging (O?<0.5%) → 3. Viscosity pre-scan → 4. Heated mass flow filling → 5. Additive injection → 6. Torque-sealed lid closure → 7. Automated palletizing
Cycle Time: 2.3 minutes/drum
APPLICABLE BARREL TYPE
