Functional features:Product Settings - Store weight settings and related filling parameters for 20 different products, easy to operate and learnMulti stage filling - can be divided into two stages (fa

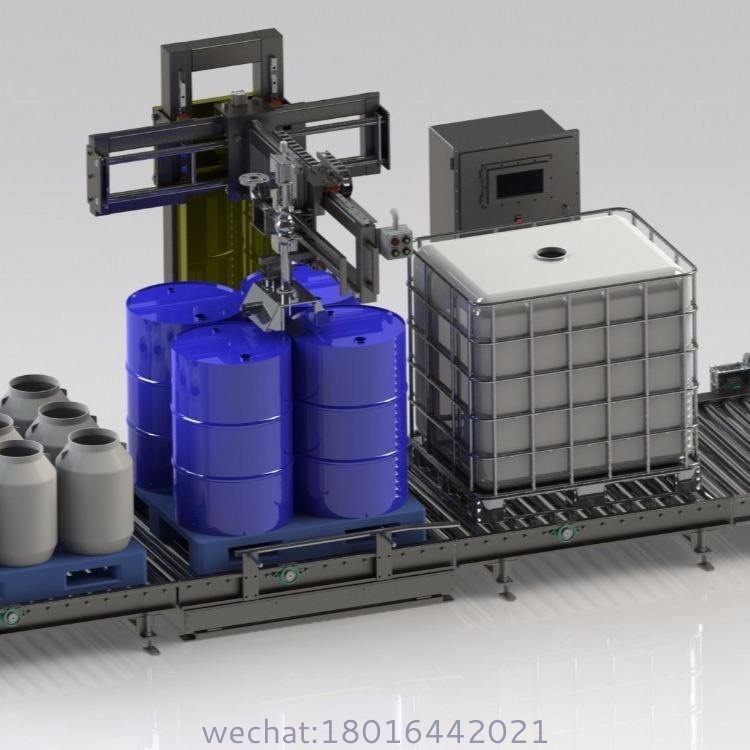

1000L Multi-Purpose Varnishes Filling Machine
Precision. Protection. Performance.
Parameter | VM-1010 (Standard) | VM-1020X (ATEX) | VM-1030F (Food Grade) |
|---|---|---|---|
Capacity | 200-1000L (±0.15%) | 200-1000L (±0.2%) | 200-1000L (±0.1%) |
Throughput | 25 drums/hour | 22 drums/hour | 20 drums/hour |
Viscosity Range | 50-500,000 cP | 100-300,000 cP | 50-200,000 cP |
Accuracy | ±0.15% gravimetric | ±0.2% | ±0.1% mass flow |
Material Contact | 316L SS + PTFE | Hastelloy C276 | 316L EP + FDA UHMW-PE |
Oxygen Control | N? blanketing (O?<0.3%) | Same | Argon inerting (O?<0.1%) |
Anti-Skinning | Ultrasonic agitation | Pulsed flow | Temperature control (±1°C) |
Power | 380V/50Hz, 15kW | 24VDC Ex ia | 380V/50Hz, 12kW |
VOC Recovery | >99% carbon adsorption | Thermal oxidizer | Condensation + carbon |
Clean Time | 10 min CIP | 15 min solvent purge | SIP: 20 min @ 121°C |
Footprint (L×W×H) | 3500×2200×3200mm | 3800×2400×3500mm | 3600×2300×3300mm |
Performance Guarantee:
Skin Reduction: >98% vs traditional filling
Haze Control: <0.05% (ASTM D1003)
Color Stability: ΔE<0.4 (ISO 2813)
Varnish Type | Technology | Benefit |
|---|---|---|
High-Gloss Furniture | Heated path (40°C±0.5°C) | Prevents cold thickening |
Automotive Clearcoat | Vacuum degassing (-0.9 bar) | Eliminates microbubbles |
Marine Varnish | Pulsed flow + dehumidifier | Prevents blushing in humid environments |
Furniture Coatings
Feature | Specification |
|---|---|
Haze reduction | <0.05% (ISO 13803) |
Wood grain enhancement | AI-driven flow optimization |
UV stability | QUV 1000h ΔYI<1.0 (ASTM D4587) |
Automotive & Industrial
Conductive grounding (<10? Ω) for static-sensitive varnishes
ATEX Zone 1 certification for solvent-based formulations
MIL-PRF-85285D compliance for aerospace coatings
Food-Grade Applications
USDA 3-A compliant surfaces
Allergen purge protocol
Migration testing port (EU 10/2011)
Metric | Conventional Filler | VM-1010 | Improvement |
|---|---|---|---|
Skinning Waste | 5-8% | <0.2% | ↓96% |
Throughput | 15 drums/hour | 25 drums/hour | ↑67% |
VOC Emission | 300-500 ppm | <5 ppm | ↓98% |
Color Consistency | ΔE>1.0 | ΔE<0.4 | ↑150% |
12" HMI with VarnishOS?
AI-Driven Protection:
Skin Formation Prediction:
Risk Factor | Preventive Action |
|---|---|
O? >0.5% for >30s | Auto N? boost |
Temp drop >3°C | Preheat varnish path |
Anomaly Response:
Issue | Resolution |
|---|---|
Viscosity spike | Flow rate adjustment |
Particulate detection | Auto-divert to filtration |
? ATEX 2014/34/EU (Zone 1) ? FDA 21 CFR 175.300 ? ISO 4618 Color Standards ? EHEDG Doc. 10 (Food Grade) ? MIL-PRF-85285D (Aerospace)
1. Drum positioning → 2. Vacuum degassing (-0.9 bar) → 3. N?/Argon inerting (O?<0.3%) → 4. Heated mass flow filling → 5. Ultrasonic anti-skinning → 6. Laser fill height verification
Cycle Time: 2.4 minutes/drum
