semi-auto machine is able to realize the automation of manual drum upload, manual cap loosening, manual positioning, auto quantitative filling and manual heavy drum out. This type of machine features

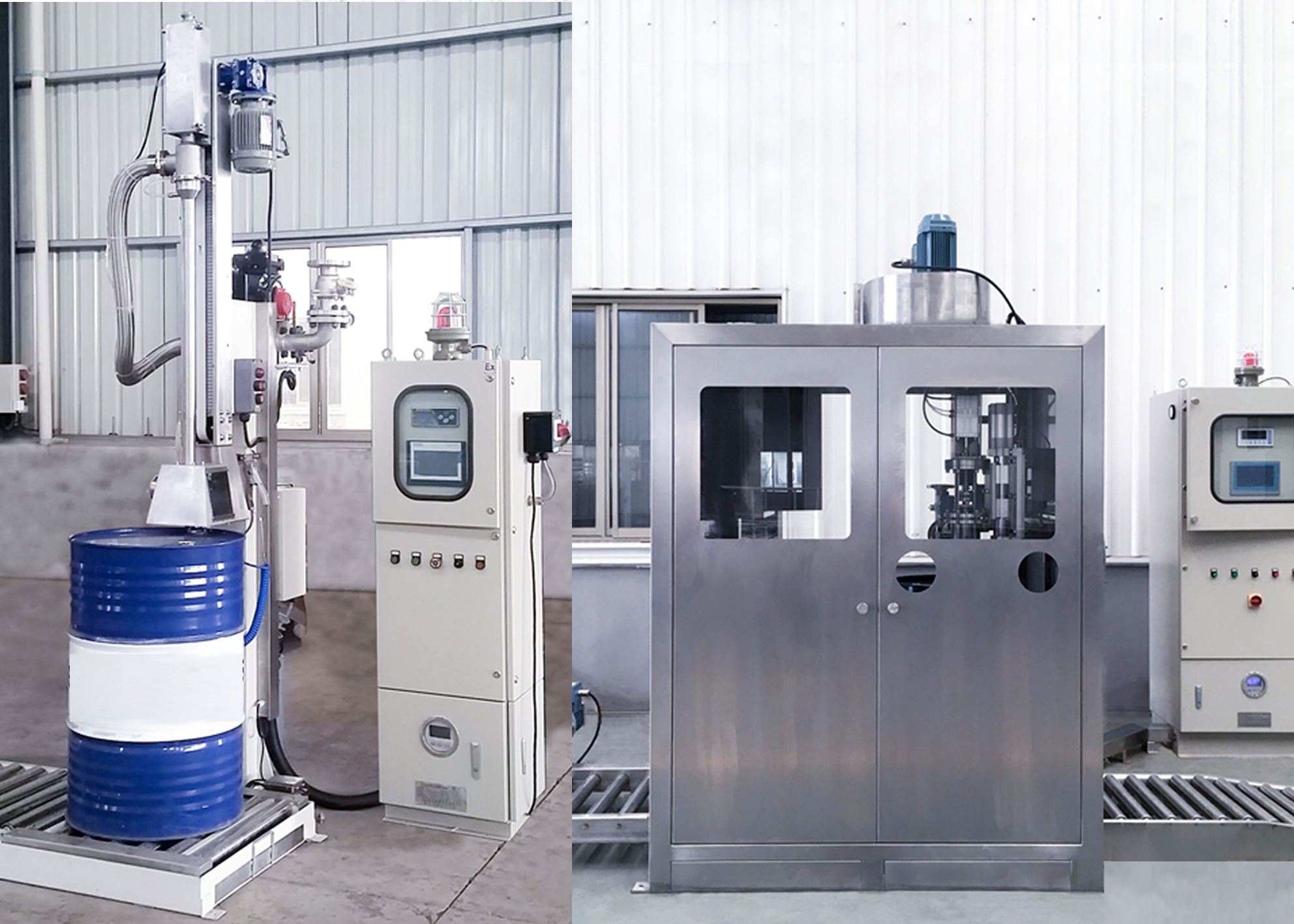

Semi-Automatic Liquid Inks Filling Machine
Precision Control ? Zero Cross-Contamination ? Multi-Viscosity Mastery
| Parameter | IP-410 (Standard) | IP-420X (ATEX) | IP-430F (Food Grade) |
|---|---|---|---|
| Capacity Range | 100ml-20L (±0.5%) | 100ml-20L (±0.6%) | 100ml-20L (±0.3%) |
| Throughput | 35 containers/hour | 30 containers/hour | 32 containers/hour |
| Accuracy | ±0.5% gravimetric | ±0.6% | ±0.3% |
| Viscosity Range | 1-500,000 cP | 5-300,000 cP | 1-200,000 cP |
| Filling Technology | Servo Piston + Teflon? | ATEX Diaphragm Pump | Peristaltic Pump |
| Drip Control | Air-Knife Cutoff | Vacuum Suction | Spring-Retract Nozzle |
| Material Contact | 316L SS + PTFE | Hastelloy C22 | 316L EP + PEEK |
| Changeover Time | <90s (Tool-Free) | <100s | <80s (CIP Ready) |
| Power | 220V/50Hz, 1.2kW | 24VDC Ex ia | 220V/50Hz, 1.0kW |
| Container Types | Cans/Tins/Bottles (?30-150mm) | Same + Drums | Same + Pharma Vials |
| Footprint (L×W×H) | 850×650×1400mm | 900×700×1500mm | 850×650×1400mm |
| Ink Type | Filling Mode | Key Technology |
|---|---|---|
| Water-Based | High-Speed (40ml/sec) | Laminar Flow Nozzle |
| Solvent-Based | Low-Shear (15ml/sec) | Anti-Static Ionization |
| UV-Curable | Pulse-Fill | Amber Light Filter |
| High-Pigment | Agitated Fill | Recirculation Loop |
圖片代碼graph TDA[Quick-Change Cylinder] --> B{Color Change?}
B -->|Yes| C[3-Step Solvent Flush]B -->|No| D[Direct Filling]C --> E[<5ppm Residual]生成失敗，換個方式問問吧Cleaning Performance:
| Ink Type | Flush Volume | Time |
|---|---|---|
| Water-Based | 150ml | 45s |
| Solvent-Based | 200ml | 60s |
| UV Ink | 250ml | 75s |
Packaging Printing
| Feature | Specification |
|---|---|
| Pantone? Matching | ΔE<0.8 (ISO 2846-1) |
| Viscosity Control | ±3% (ASTM D2196) |
| Foam Prevention | Vacuum Degassing Mode |
Industrial Marking
Conductive Inks Handling:
Resistivity Monitoring (±5%)
Static-Safe Path (<10? Ω)
High-Opacity Inks:
| Parameter | Performance |
|---|---|
| Settling Control | Auto Agitation |
| Filler Dispersion | Ultrasonic Homogenizer |
Food Packaging Inks
| Component | Compliance |
|---|---|
| Material Cert | FDA 21 CFR 175.300 |
| Cleanability | EHEDG EL Class I |
| Allergen Control | Dedicated Fluid Paths |
7" Touchscreen with InkOS?
Memory Functions:
50+ Preset Recipes: Save ink type/viscosity/volume profiles
Predictive Maintenance:
| Component | Alert Threshold |
|---|---|
| Seal Wear | Compression >15% |
| Valve Lifetime | >500k cycles |
OEE Dashboard:
| Metric | Tracking |
|---|---|
| Uptime | 98.5% |
| Reject Rate | <0.1% |
? ATEX 2014/34/EU (IP-420X) ? FDA 21 CFR 175.300 ? ISO 9001:2015 ? RoHS/REACH
| Metric | Manual Filling | IP-410 | Improvement |
|---|---|---|---|
| Accuracy | ±3-8% | ±0.5% | 6-16x better |
| Ink Waste | 5-12% | <0.5% | ↓90% |
| Operator Fatigue | High | Low | 70% reduction |
| Color Change Time | 15-25 min | <90s | ↓94% |
APPLICABLE BARREL TYPE
