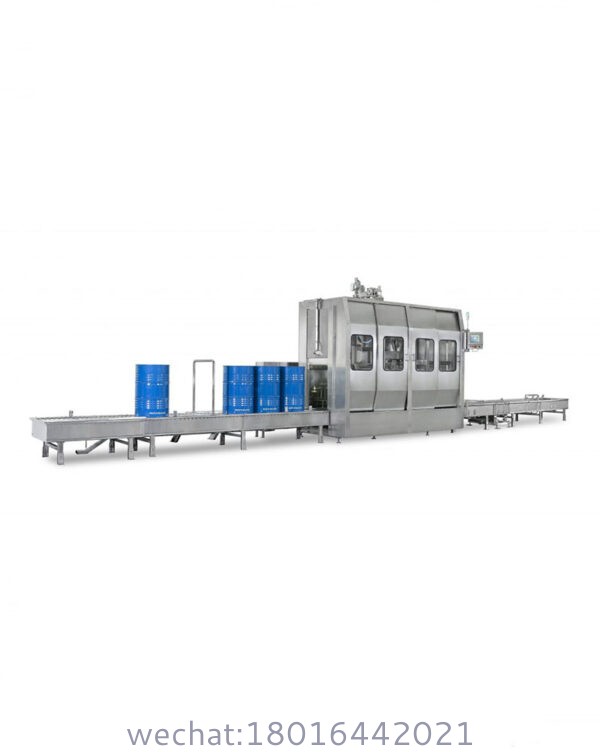

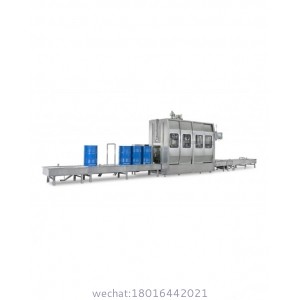

The empty drums are fed from the infeed conveyor and reach the automatic filler via an accumulating roller conveyor. An assignment unit separates the single drums, the first drum is transported into t
Overview
The Fully Auto Single Drum Filling Line is engineered for high-speed, precision filling of 200L drums in industrial settings. Ideal for chemicals, lubricants, food-grade oils, and pharmaceuticals, this system integrates automated loading, filling, capping, and labeling into a seamless operation. With advanced PLC control and touchscreen HMI, it ensures ±0.1% filling accuracy while minimizing manual intervention and spill risks.
Smart Automation: Robotic arm loading/unloading, automatic drum positioning, and servo-driven filling.
Versatile Compatibility: Handles liquids (viscous to thin), powders, and granules.
Safety Compliance: Explosion-proof design, emergency stops, and vapor recovery systems.
Hygienic Construction: 316L stainless steel contact parts, CIP/SIP capabilities.
Data Integration: IoT-ready for real-time production tracking (OEE, batch reports).
| Parameter | Specification | Notes |
|---|---|---|
| Filling Capacity | 30-60 drums/hour | Adjustable via HMI |
| Filling Range | 100–220 L | Calibrated for 200L standard drums |
| Accuracy | ±0.1% of target volume | Coriolis mass flow meter technology |
| Power Supply | 380V/50Hz, 3-phase | 5.5 kW max consumption |
| Air Pressure | 0.6–0.7 MPa | Dry, oil-free air required |
| Conveyor Speed | 0–10 m/min | Variable frequency drive (VFD) control |
| Material Contact | 316L stainless steel & PTFE seals | FDA/EC1935 compliant |
| Dimensions (L×W×H) | 8,000 × 2,200 × 2,500 mm | Modular design for compact layouts |
Infeed Conveyor: Roller type with drum centering.
Filling Station: 2-nozzle filling head with drip tray.
Weighing System: Load cells (1,000 kg capacity).
Capping Unit: Automatic bung/seal applicator.
Labeling Machine: Thermal transfer printer/applicator.
Outfeed Conveyor: Accumulation for staged removal.
Control Panel: 10" color HMI + Siemens PLC.
Chemicals: Solvents, acids, adhesives.
Food & Beverage: Edible oils, syrups, additives.
Pharma: APIs, glycerin, sanitizers.
Lubricants: Engine oils, greases.
? 25% Faster ROI: Reduces labor costs by 70% vs. manual filling.
? Zero Contamination: Sealed pathway for sterile processes.
? Customizable: Add leak testing, nitrogen purging, or palletizing.
? Global Support: 24/7 remote diagnostics + 12-month warranty.
