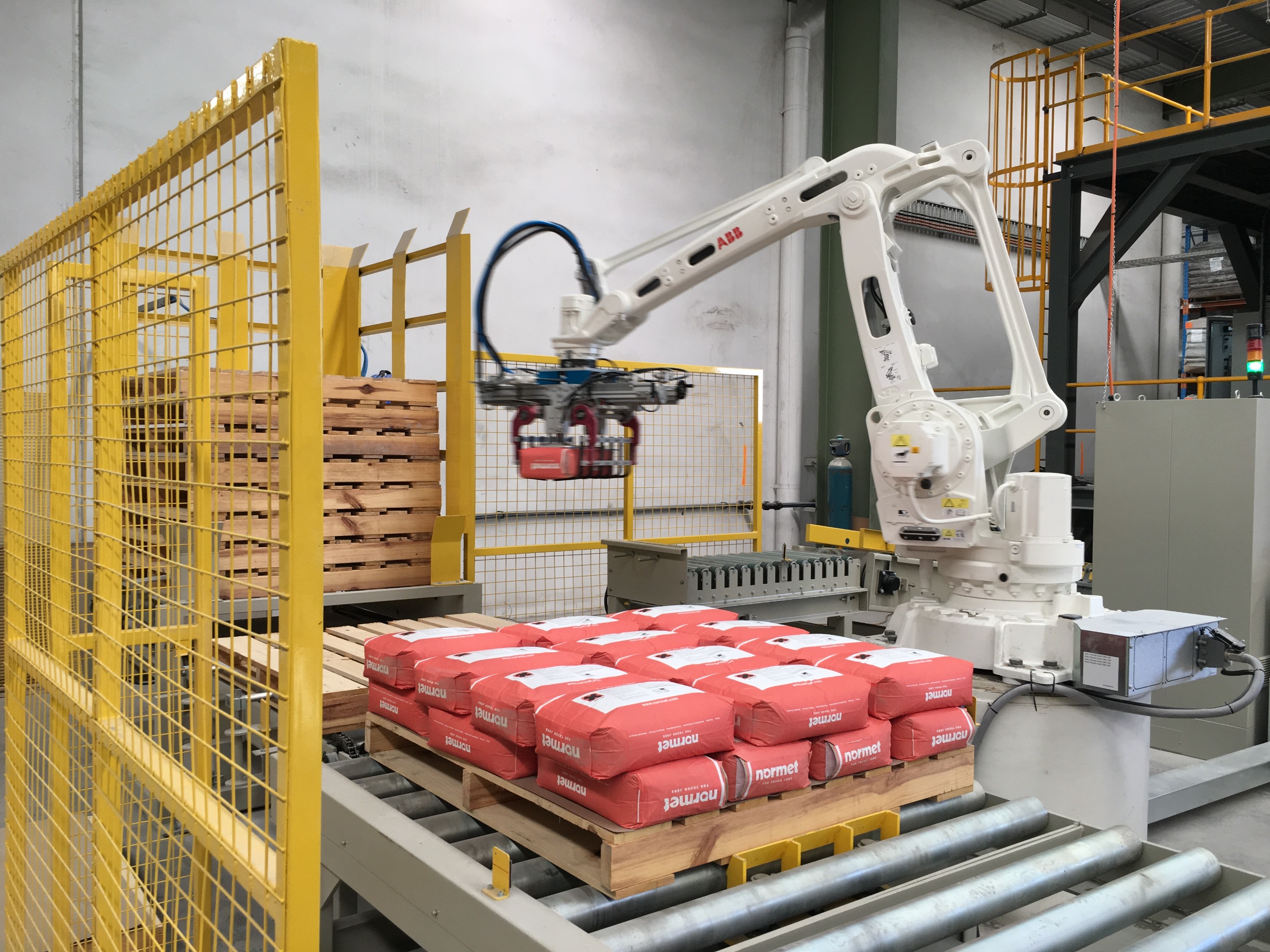

The palletizing robot is the product of the organic combination of machinery and programmable PLC, which provides higher production efficiency for modern automated production and replaces repetitive a
| Parameter | Standard Model | High-Capacity Model | Test Standard |
|---|---|---|---|
| Max. Payload | 300 kg | 1,600 kg | ISO 8373:2021 |
| Cycle Rate (25kg bags) | 25 cycles/min | 18 cycles/min | ISO 9283:2022 |
| Positioning Accuracy | ±0.05 mm | ±0.1 mm | VDI 2861 |
| Reach | 3.2 m | 4.5 m | ISO 9787 |
| Pallet Height | 2.5 m | 3.8 m | FEM 9.511 |
2.1 Robotic Manipulator
Kinematic Structure: 6-axis articulated arm
Drive System: Direct-drive servomotors (0.001° resolution)
Protection Rating: IP67 (corrosion/washdown resistant)
Material: Carbon fiber + 316L SS joints
2.2 Intelligent End Effectors
| Type | Technical Specification | Application |
|---|---|---|
| Adaptive Vacuum Gripper | 48-zone control (0-95 kPa) | Mixed cartons |
| Force-Controlled Clamp | 5-40 kN adjustable (±0.1%) | Drums/IBCs |
| Hybrid Tool Changer | Auto-switch <1 sec | Multi-product lines |
2.3 Vision & AI Integration
3D Vision System: Time-of-flight camera (0.1mm depth resolution)
AI Algorithms:
Deformed package compensation
Self-optimizing stacking patterns (patented)
Predictive collision avoidance
| Component | Specification | Compliance |
|---|---|---|
| Repeatability | ±0.02 mm | ISO 9283 |
| Power Consumption | 0.12 kWh/pallet | IEC 62061 |
| Noise Emission | ≤68 dB(A) @ 1m | ISO 4871:2019 |
| MTBF | >60,000 hours | ISO 281:2007 |
| Industry | Critical Adaptation | Certification |
|---|---|---|
| Food & Beverage | IP69K washdown design | EHEDG Type EL-A |
| Chemicals | ATEX Zone 21 compliance | IECEx T4 |
| Pharmaceuticals | GMP-compliant materials | FDA 21 CFR 177.2600 |
| Building Materials | 1,600 kg cement bag handling | EN 15011 |
| Metric | GZ-RPS3000 | Industry Average |
|---|---|---|
| Palletizing Accuracy | 99.8% | 95-97% |
| Product Damage Rate | <0.01% | 0.3-0.8% |
| Changeover Time | <45 sec | 15-30 min |
| Energy Savings | 35% vs hydraulic | Baseline |
Integrated Safety Controller: SIL 3/PLe (ISO 13849-1)
Protection Systems:
3D safety scanners (IEC 61496 Type 4)
Emergency stop (0.2s response)
Global Certifications:
CE, UL 1740
ATEX II 2G/3D
GOST-R, CCC
7.1 Industry 4.0 Connectivity
| Interface | Protocol | Function |
|---|---|---|
| Warehouse Management | SAP EWM/ Oracle | Real-time inventory sync |
| Predictive Maintenance | OPC UA | Component health monitoring |
| Digital Twin | Siemens Tecnomatix | Virtual commissioning |
7.2 Key Innovations
Auto-Learning Pattern Generator:
30% faster layer building
15% increased pallet density
Carbon Fiber Arm Technology:
40% weight reduction
25% higher acceleration
