Technical conditions for column stacker crane:Equipment usage: handling and palletizingLoad: 100-180kgPrecision: 0.2mmPower supply: AC 380V ± 10%, 50Hz ± 2%, three-phase four wire typeCompressed air:
| Parameter | Standard | High-Capacity | Test Standard |
|---|---|---|---|
| Max. Payload | 1200 kg | 1600 kg | ISO 8373:2021 |
| Cycle Time (60kg cases) | 18 cycles/min | 15 cycles/min | ISO 9283:2022 |
| Positioning Accuracy | ±0.05 mm | ±0.08 mm | ISO 9283:2022 |
| Repeatability | ±0.02 mm | ±0.03 mm | ISO 9283:2022 |
| Pallet Size Range | 800×600–1600×1400mm | ISO 6780:2020 | |
| Ambient Temperature | -10°C to +55°C | IEC 60068-2-1 |

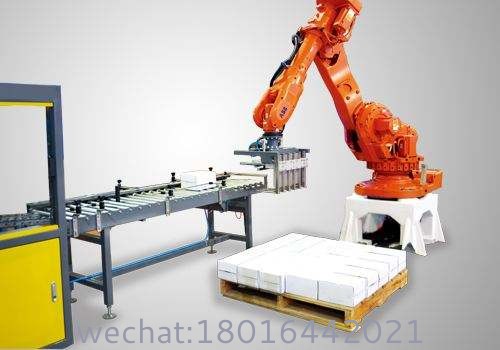

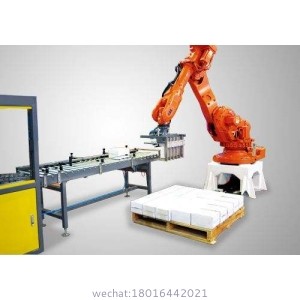

2.1 Robotic Manipulator
Kinematic Structure: 6-axis articulated arm with carbon fiber-reinforced links
Reach: 3,250 mm (standard) / 4,200 mm (extended)
Joint Motors: Direct-drive servo motors (0.0005° resolution)
Protection Rating: IP69K (high-pressure washdown capable)
2.2 Precision End Effectors
| Type | Technical Specification | Application |
|---|---|---|
| Adaptive Vacuum Gripper | 32-zone programmable suction (0-95 kPa) | Mixed box sizes |
| Force-Controlled Clamp | 5-40 kN adjustable grip (±0.05% accuracy) | Drums/IBCs |
| Hybrid Tool Changer | Automatic switching <2 sec | Multi-product lines |
2.3 Integrated Material Handling
Infeed System: Servo-driven chain conveyor (±0.2mm positioning)
Pallet Management: Automatic dispenser with 30-pallet capacity
| Metric | Specification | Compliance Standard |
|---|---|---|
| Power Consumption (Peak) | 34 kW | IEC 61800-9-2 IE5 |
| Regenerative Energy | 28% recovery efficiency | ISO 50001:2018 |
| Acoustic Noise | ≤63 dB(A) @ 1m | ISO 4871:2019 |
| Vibration | <1.8 mm/s RMS | ISO 10816-3 |
4.1 Motion Control Architecture
Controller: B&R Automation PC 3100 with mapp Technology
Drive System: POWERLINK real-time bus (≤100 μs cycle time)
Performance Metrics:
Path following error: <0.08 mm
Jerk limitation: 8000 m/s3
4.2 Advanced Vision System
Hardware: 3D ToF camera + 2D barcode reader
AI Functions:
Deformation compensation (up to 15% package variance)
Predictive load stabilization
Self-optimizing layer patterns (patent pending)
| Metric | GZ-RP1200 | Industry Average |
|---|---|---|
| Palletizing Accuracy | 99.2% | 95-97% |
| Product Damage Rate | 0.008% | 0.2-0.5% |
| Changeover Time | 45 sec | 10-20 min |
| Energy Consumption | 0.11 kWh/pallet | 0.18-0.25 kWh/pallet |
6.1 Safety Integration
Collision Detection: 6-axis torque monitoring (±0.8 Nm sensitivity)
Safety Controller: SIL 3/PLe (IEC 62061/ISO 13849-1)
Protection System: 3D safety scanner (Type 4 per IEC 61496)
6.2 Global Compliance
| Region | Certification |
|---|---|
| International | ISO 10218-1/2:2022, ANSI/RIA R15.08-2023 |
| Europe | CE, EMC 2014/30/EU, MD 2006/42/EC |
| North America | UL 1740, NRTL (cULus) |
| Hazardous Areas | ATEX II 2G Ex h IIC T4 |
Structural Calculation Report (FEM 1.001:2018)
Cycle Time Validation Data (ISO 9283 test records)
Safety Validation Package (ISO 13849-1 PL e dossier)
3D Simulation Files (Delmia V5 format)
APPLICABLE BARREL TYPE
