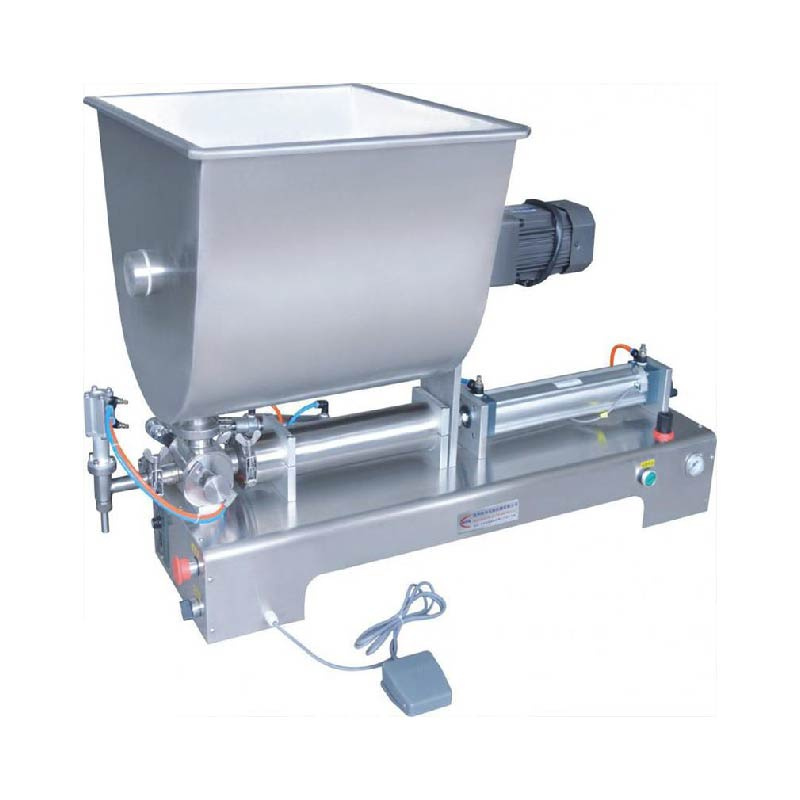

Tomato sauce filling machineA piston filling machine is a type of filling machine that fills high concentration fluids. It uses a three-way principle of a piston and a rotary valve driven by a cylinde
Zero Contamination ? 99.5% Yield ? USDA/EC1935 Certified
For PET Jars, Glass Bottles & Pouches (5–50L Batch Production)
Shanghai Guangzhi Automation’s GZ-TomatoFill Series revolutionizes sauce packaging with sanitary low-shear filling, integrated deaeration, and CIP/SIP automation. Designed for thick (20,000–150,000 cP), pulp-rich tomato sauces, this system eliminates splashing, prevents particle damage, and achieves 45 containers/hour – all while meeting FDA, EU, and HALAL food safety standards.
? Gentle Product Handling
Low-Shear Piston Pumps: Shear rate <800 s?1 (preserves pulp integrity)
Particle-Friendly Paths: 3" wide-bore tubing + smooth transitions
? Sauce-Specific Deaeration
Vacuum chamber removes 95% entrapped air → prevents oxidation & splashing
? Hygienic Quick-CIP
Automated 4-step cleaning: Rinse → Caustic → Acid → Sanitize (15 min cycle)
? Splash-Free Nozzle
Retractable PFA-coated lance with anti-drip collar
? Recipe-Driven Flexibility
HMI stores 50+ profiles: Chunky/Crushed/Paste sauces
Table: GZ-TomatoFill Performance Metrics
| Parameter | Specification | Food-Safety Advantage |
|---|---|---|
| Accuracy | ±1% (volumetric piston) | Meets FDA 21 CFR 177.2600 |
| Throughput | 45 containers/hour (20L pails) | |
| Viscosity Range | 5,000–150,000 cP | Handles thick paste + chunky pulp |
| Particle Size | ≤12 mm (tomato chunks/seeds) | Zero blockage guarantee |
| Material Contact | 316L SS (Ra≤0.4μm) / PFA / EPDM | EHEDG & 3-A certified |
| CIP/SIP | Auto 4-step cleaning + 121°C SIP | Validatable per ASME BPE |
| Power | 400V/50Hz, 4.8 kW | IP69K washdown motors |
| Container Support | 5–50L pails, jars, bag-in-box | Tool-free changeover (90 sec) |
| Compliance | USDA, EC1935/2004, ISO 22000, BRCGS | HALAL, KOSHER options |
| Pain Point | GZ-TomatoFill Solution | Result |
|---|---|---|
| Pulp Damage | Wide-bore paths + low-shear pump | Whole pulp preservation |
| Sauce Oxidation | Vacuum deaeration (95% O? removal) | 30% longer shelf life |
| Cleaning Downtime | Auto-CIP with TACT monitoring | 15 min sanitation (vs. 2 hrs) |
| Splash & Drips | Submerged nozzle + anti-drip collar | 99.5% yield → no wipedown needed |
| Bacterial Contamination | Electropolished SS + dead-leg-free design | Passes ATP swab tests |
