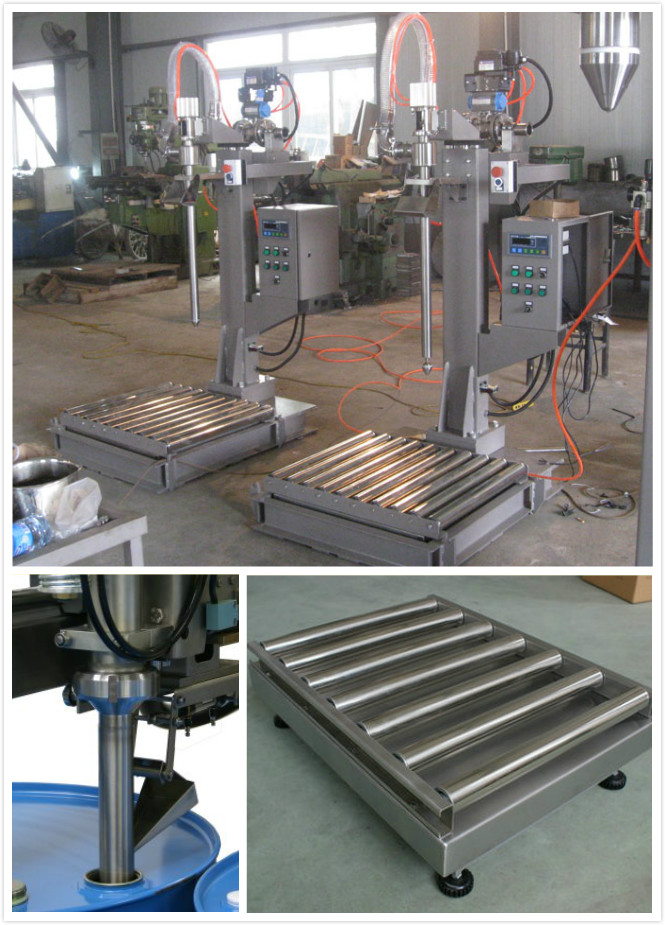

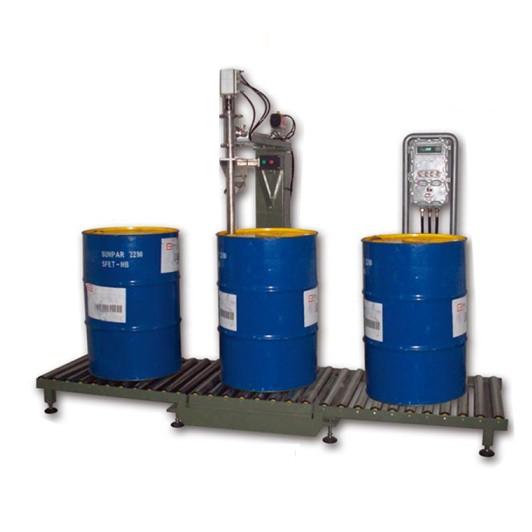

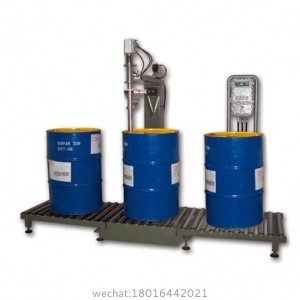

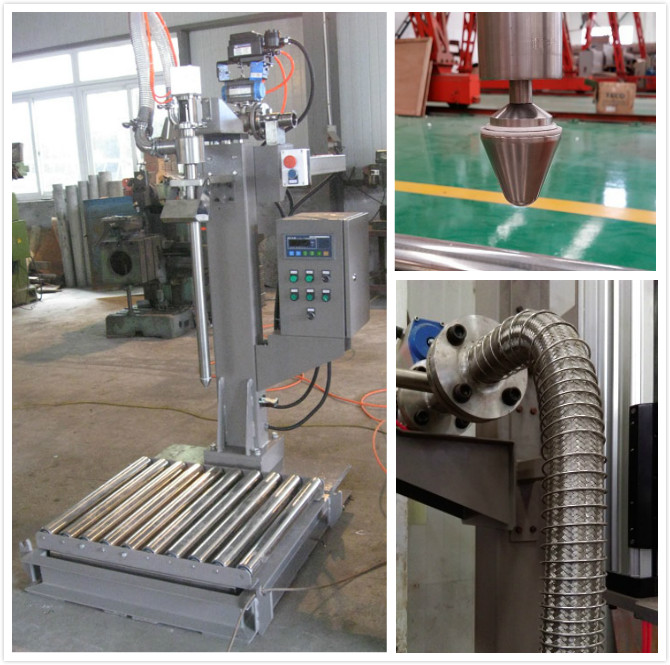

Simple 200kg refine glycerin steel drum filling line
Drum filling line's general information
Filling material:liquids(high temperature liquids,corrosive liquids) and viscous,even chunky products.
filling model:subsurface filling
filling nozzles:1,customized order welcome
filling volume:50-300KG
filling precision:0.2%
air pressure:0.4-0.5mpa
filling speed:1drum/min(300L)
Drum filling line 's working process
The operator places the drum on the filler

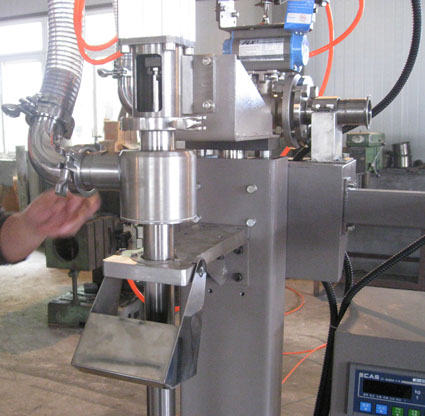

The operator aligns the nozzle to the drum
The operator presses the button of " filling orientation" at first, then presses the button of "start filling", filling nozzles lowing down,start filling automatically
When it comes to the weight set, automatically stops filling and nozzle out of the drum
The operator push out the drum
Drum filling line 's features
Machine adopts three steps filling,fast filling,slow dow filling,then precision filling.
Material contacted parts:sus316 and with sus304 for other parts
Rolling conveyor material:stainless steel
Vacuum withdrawn system,ensure the high filling precision,and no drops
can achieve net weight and gross weight filling according to clients' requirement
AIRTAC pneumatic+SIEMENS PLC
Toledo Weight instruments and tracer
Drum filling line's available options
explosive proof system to meets the requirements of hazardous
drum caper and closer
GFM-200 | |||
Suitable material | Liquid like coating, printing ink, paint, asphalt, glue, lubricant, petrochemical, fineness chemical etc | ||
Weighing form | Filling above level (liquid without foam) Filling under level (liquid with foam) | ||
Filling capacity | 30kg | 60kg | 200kg |
Accuracy | ≤ 0.1% | 0.2% | ≤ 0.1% |
Filling speed | 180-240 barrels/hour | 120-180 barrels/hour | 45-60 barrels/hour |
Barrel form | Drum, pail, can etc. | ||
Gas power | 0.5MPa | ||
Work environment | Temperature ：-20℃～45℃relative humidity：95%（none dew） | ||
voltage | AC220V 50Hz | ||
Max power | 1KW | ||
Filling mouth material | SUS304/SUS316 | ||
Platform size(mm) | 350x350 | 350x350 | 700x700 |
Option | Stainless steel 304 conveyor roller | ||
