CAS BCH loadcells (500kgf-2.5tf)
CAS load cell, CAS load cell, BCH Single point bench scale. platform scale load cell models: BCH-500L BCH-1, BCH-1.5, BCH-2, BCH-2.5T.
⊙FEATURES
Protection class IP65
Large platform application
Off center compensated
⊙Material
Anodized Aluminum
⊙Mounting
Bolt M16 2.0(10.9)
Tightening torque: 255Nm
⊙Cable
Braided Shield 4-wire round cable with Urethane-Jacket
⊙Maximum Platform Size
1200 x 1200mm
| Model | BCH | |
| Rated Capacity (kgf) | 500, 1K, 1.5K, 2K, 2.5K | |
| Accuracy Class | - | |
| Combined Error (% R.O) | ≤0.03 | |
| Creep for 30 min. (% R.O) | ≤0.03 | |
| Excitation | Recommended (V) | 10 |
| Maximum (V) | 15 | |
| Compensated Temerature Range(?C) | -10~+40 | |
| Operating Temperature Range(?C) | -20~+70 | |
| Material & Plate | Anodized Aluminum | |

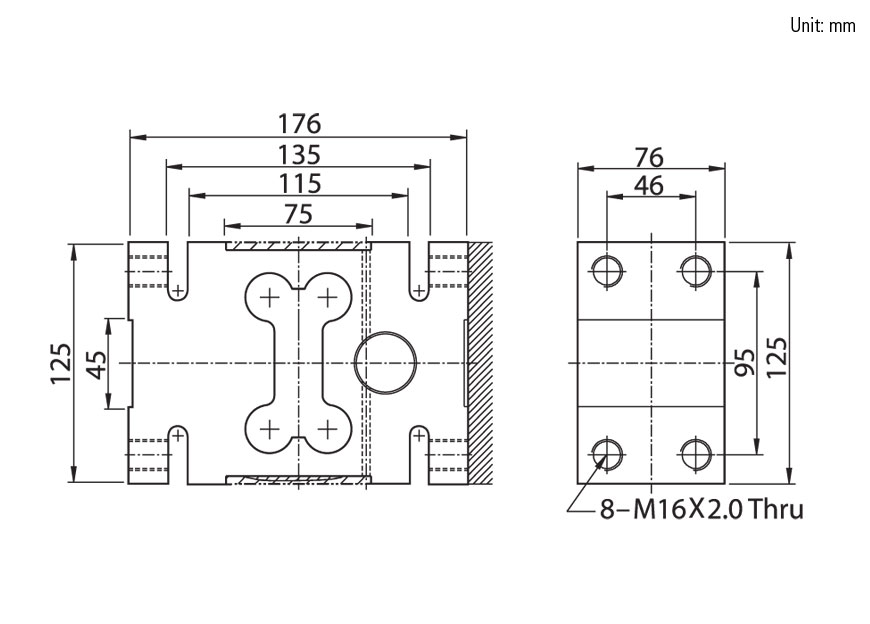

![BCH[2].jpg](../upload/201704/1491891160758082.jpg "1491891160758082.jpg")
