CAS SBA loadcells (25kg-5tf)
CAS SBA loadcells (25kg-5tf)CAS load cell, SBA s-beam load cell models: SBA-20L, SBA-50L, SBA-100L, SBA-200L, SBA-500L, SBA-1, SBA-2, SBA-3, SBA-5.⊙FEATURESOIML C3 approved(OIML R60)Compatible wi
- Brand:： CAS
- Model:： SBA
CAS SBA loadcells (25kg-5tf)
CAS load cell, SBA s-beam load cell models: SBA-20L, SBA-50L, SBA-100L, SBA-200L, SBA-500L, SBA-1, SBA-2, SBA-3, SBA-5.
⊙FEATURES
OIML C3 approved(OIML R60)
Compatible with other sources
Protection class IP65
⊙OPTIONS
OIML C3 approved
⊙Material
Nickel plated steel
⊙Cable
Braided shield 4-wire round cable
with Urethane-jacket
| Max. capacity | kgf | 20, 50, 100, 200, 500, 1k, 2k, 3k, 5k | |
| Rated output Zero balance | mV/ V mV/ V | 3.0 ± 0.3 0.0 ± 0.03 | |
| Accuracy class | D3 | C3 | |
| Combined error Repeatability Creep for 30min. Temperature effect on Zero Value Output value | % % % %/ 10℃ %/ 10℃ | 0.03 0.01 0.03 0.028 0.015 | 0.02 0.01 0.017 0.014 0.011 |
| Excitation Recommended Maximum Resistance Input Output Insulation | V V Ω Ω MΩ | 10 15 400 ± 25 350 ± 3.5 ＞2,000 | |
| Compensated temperature range Operating temperature range | ℃ ℃ | -10 to +40 -30 to +80 | |

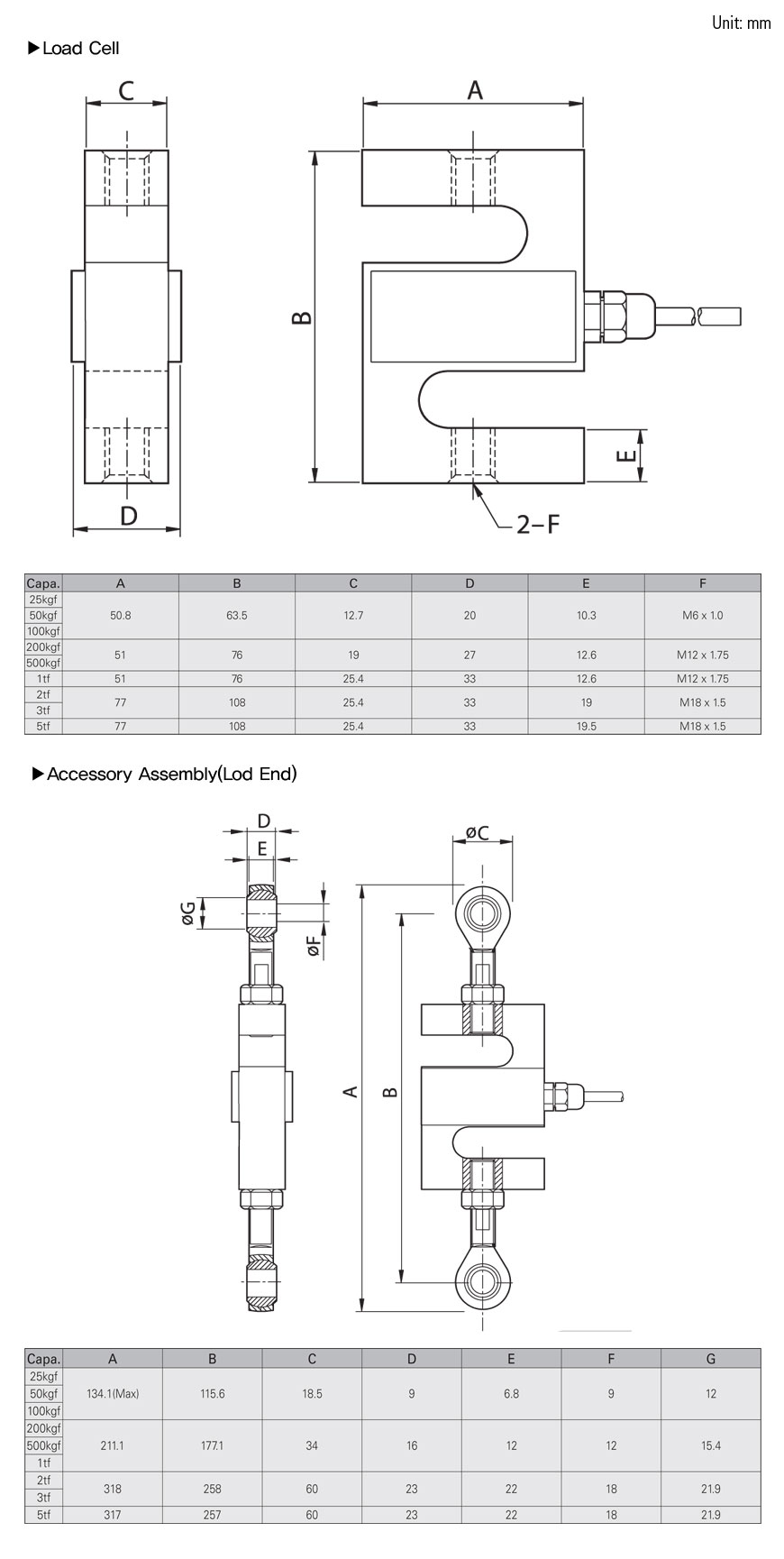

![SBA[2].jpg](../upload/201704/1491813009621058.jpg "1491813009621058.jpg")
