CAS SBS loadcells (500kg-5tf)
CAS SBS loadcells (500kg-5tf)CAS load cell, SBS stainless stell load cell s-beam S type load cell models: SBS-500L, SBS-1, SBS-2, SBS-5⊙FEATURESStainless steelProtection class IP67⊙OPTIONSEx
- Brand:： CAS
- Model:： SBS
CAS SBS loadcells (500kg-5tf)
CAS load cell, SBS stainless stell load cell s-beam S type load cell models: SBS-500L, SBS-1, SBS-2, SBS-5
⊙FEATURES
Stainless steel
Protection class IP67
⊙OPTIONS
Ex ia C T6
⊙Material
Stainless steel
⊙Cable
Braided shield 4-wire round cable
with Urethane-jacket
| Max. capacity | kgf | 500, 1tf, 2tf, 5tf |
| Rated output Zoro balance | mV/ V mV/ V | 2.0 ± 0.002 0 ± 0.02 |
| Combined error Repeatability Creep for 30min. Temperature effect on Zero Value Output value | % % % %/ 10℃ %/ 10℃ | 0.05 0.01 0.03 0.03 0.014 |
| Excitation Recommended Maximum Resistance Input Output Insulation | V V Ω Ω MΩ | 10 15 400 ± 25 350 ± 3.5 ＞2,000 |
| Compensated temperature range Operating temperature range | ℃ ℃ | -10 to +40 -30 to +80 |

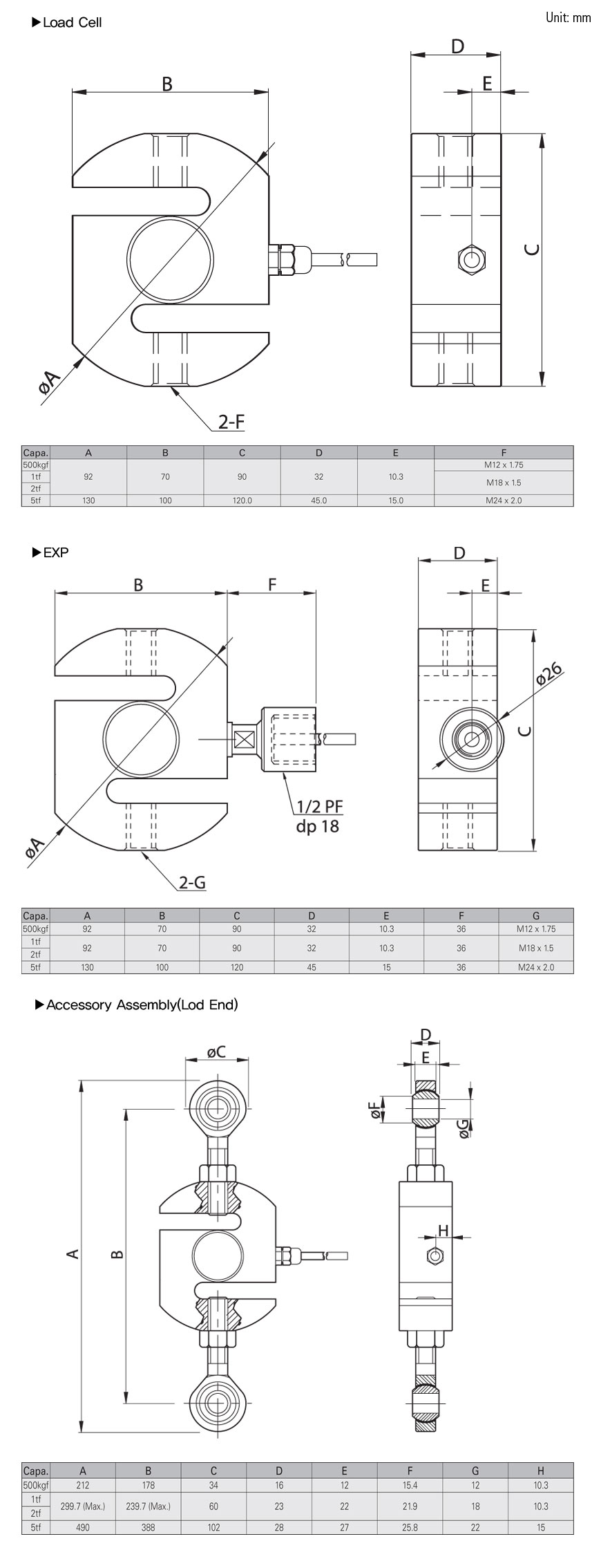

![SBS[2].jpg](../upload/201704/1491812105116459.jpg "1491812105116459.jpg")
