BCL Single point load cell, 6kgf - 30kgf
⊙FEATURES
Low cost
Low-profile
PTB and OIML C3 approved(OIML R60)
Off center compensated(OIML R76)
Protection class IP65
⊙OPTIONS
6-wires connection
OIML C3 approved
⊙Material
Anodized Aluminum

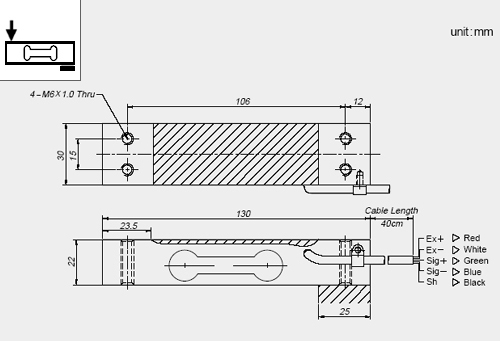

⊙Mounting
Socket-head cap screw M6 1.0(10.9)
Tightening torque: 14Nm
⊙Cable
Braided Shield 4-wire round cable
with PVC-Jacket
⊙Maximum Platform Size
300 300mm
⊙Ordering Information
BCL - XXL
┳
Capacity in kg
