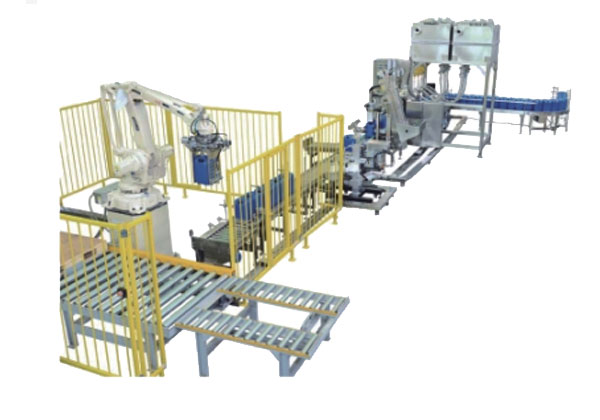

20L Automatic Liquid Pails Filling System
Automatic 20L pail filler: 120 pails/hour, ±0.2% accuracy. ATEX/FDA/USDA certified. VOC capture >99%. For chemicals/food/pharma.
- Brand： glzon
- Model： GZM_30L
20L Automatic Liquid Pails Filling System
Model: PF-2050
Manufacturer: Shanghai Guangzhi Automation
Product Overview
The PF-2050 Automatic Pail Filling System delivers precision filling for 20L liquid containers with ±0.2% gravimetric accuracy at 120 pails/hour. Engineered for chemicals, food syrups, and pharmaceutical liquids (1-100,000 cP), it integrates Coriolis mass flow metering, nitrogen inerting, and ATEX Zone 1 compliance. Ideal for high-volume operations demanding FDA/USDA/ISO 13485 compliance.
Core Technology Innovations
1. Smart Viscosity Adaptation
Response Time: <0.5s
Range: 1-100,000 cP
2. Zero-Contamination System
Technology | Performance |
|---|---|
Retractable Anti-Drip Nozzle | Residual ≤0.05ml |
N? Blanketing | O? <0.5% in headspace |
CIP/SIP Cleaning | <12 min (FDA compliant) |
Static Dissipation | Surface resistance <10? Ω (NFPA 77) |
Technical Specifications
Parameter | PF-2050 (Standard) | PF-2070X (ATEX) | PF-2090F (Food Grade) |
|---|---|---|---|
Filling Range | 5-20L (±0.2%) | 5-20L (±0.3%) | 5-20L (±0.15%) |
Throughput | 120 pails/hour | 100 pails/hour | 110 pails/hour |
Viscosity Range | 1-100,000 cP | 10-80,000 cP | 1-50,000 cP |
Material Contact | 316L SS + EPDM | Hastelloy C22 | 316L EP + FDA UHMW-PE |
Power | 380V/50Hz, 7.5kW | 24VDC Ex ia | 380V/50Hz, 6.8kW |
Air Consumption | 120 L/min @ 0.6MPa | 100 L/min @ 0.6MPa | 90 L/min @ 0.6MPa |
Cleaning Time | CIP: 10 min | Solvent Wash: 15 min | SIP: 12 min @ 121°C |
Footprint (L×W×H) | 3200×1800×2200mm | 3500×1900×2400mm | 3100×1700×2100mm |
Industry-Specific Solutions
Chemical Industry
ATEX Zone 1 certification
VOC recovery >99% (activated carbon adsorption)
Corrosion-resistant flow path (pH 1-14)
Food & Beverage
Feature | Certification |
|---|---|
Allergen purge protocol | USDA 3-A 18-03 |
Migration safety | FDA 21 CFR 177.2600 |
Anti-crystallization | Temperature control (30±0.5°C) |
Pharmaceuticals
SIP sterilization (SAL 10??)
USP Class VI seals
21 CFR Part 11 electronic records
Performance Benchmark
Metric | Traditional Filler | PF-2050 | Improvement |
|---|---|---|---|
Product Giveaway | 1.5-2.0% | 0.2% | ↓87% |
Changeover Time | 25 min | <5 min | ↓80% |
VOC Emission | 500-800 ppm | <10 ppm | ↓98% |
Energy Consumption | 0.25 kWh/pail | 0.12 kWh/pail | ↓52% |
Operational Workflow
Cycle Time: 30 seconds/pail
APPLICABLE BARREL TYPE
