18L Paint Filling Machine for Metal Gallons Factory-Ready Solution
Automatic paint filler for 18L metal gallons: 40 units/hour, ±0.3% accuracy. Anti-skinning & dent protection. ATEX/FDA certified.
- Brand： glzon
- Model： GZM_10L
MetalFill Pro MF-1800 Series

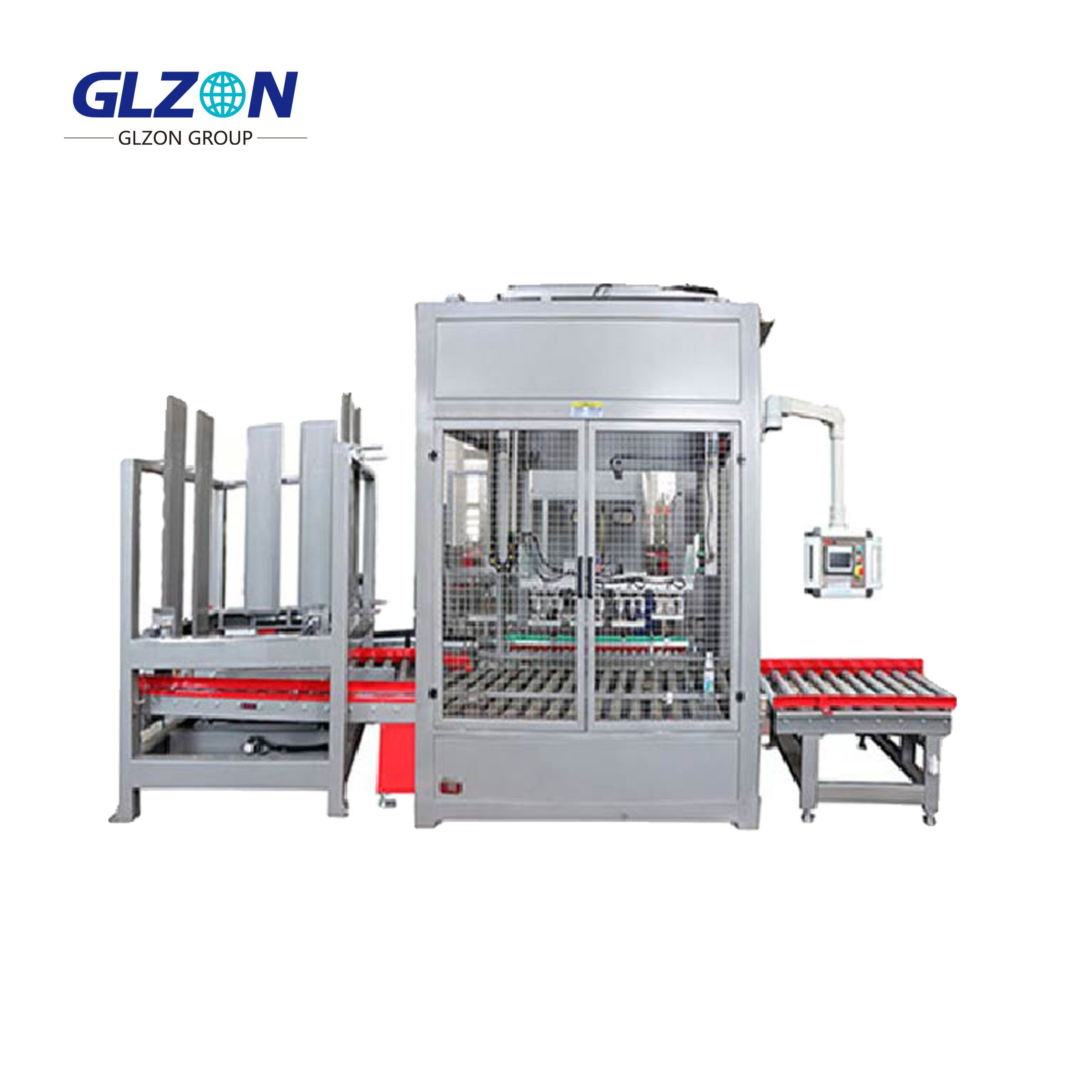

18L Paint Filling Machine for Metal Gallons
Precision. Durability. Factory-Integrated Efficiency.
Technical Specifications
Parameter | MF-1810 (Standard) | MF-1820X (ATEX) | MF-1830A (Auto Grade) |
|---|---|---|---|
Capacity | 5-18L (±0.3%) | 5-18L (±0.4%) | 5-18L (±0.25%) |
Throughput | 40 gallons/hour | 36 gallons/hour | 38 gallons/hour |
Viscosity Range | 100-50,000 cP | 200-40,000 cP | 100-60,000 cP |
Accuracy | ±0.3% gravimetric | ±0.4% | ±0.25% |
Material Contact | 316L SS + PTFE | Hastelloy C22 | 316L EP + Ceramic Coating |
Anti-Skinning | Nitrogen Blanketing | Same + Ultrasonic Agitation | Pulse Filling |
Power | 380V/50Hz, 3.8kW | 24VDC Ex ia | 380V/50Hz, 4.2kW |
VOC Control | Carbon Adsorption >99% | RTO >99.5% | Condensation + Carbon |
Container Types | Metal Pails (0.6-1.2mm steel) | Same | Same + Anti-Dent Sensors |
Changeover Time | <2 min (Tool-Free) | <3 min | <2 min |
Footprint (L×W×H) | 2200×1600×2100mm | 2400×1700×2300mm | 2300×1650×2200mm |
Core Innovations for Metal Gallons
1. DentGuard? Protection System
Robotic Soft-Grip Handling:
Vacuum suction cups (80 Shore A)
Force control <50N (prevents deformation)
Collision Avoidance:
LiDAR scanning ±1mm container alignment
Auto-stop on impact risk detection
2. Paint-Specific Precision Tech
Feature | Technology | Performance |
|---|---|---|
Color Consistency | In-line spectrophotometer | ΔE<0.5 (ISO 13655) |
Viscosity Adaptation | Heated path (30-60°C ±1°C) | Handles thixotropic paints |
Skin Prevention | O?<0.3% headspace control | Zero surface film formation |
Metallic Flake Control | Low-shear pump + pulsed flow | Orientation uniformity >95% |
Factory-Ready Integration
Plug-and-Play Modules:
? Conveyor Interface: - Roller width: 400-600mm adjustable - Max load: 30kg/gallon ? ERP Connectivity: - OPC UA / MES / SAP integration - Real-time OEE dashboards ? Safety Systems: - Light curtains (EN ISO 13855) - Emergency stop cascade
Industry Applications
Automotive Coatings
Requirement | Solution |
|---|---|
Color matching | Pantone?-calibrated filling |
High-Gloss Finish | Viscosity control ±2% |
Fast Cure | IR pre-heating option |
Industrial Paints
Epoxy/polyurethane filling
MIL-PRF-23236 compliance package
Abrasion-resistant additive dosing
Architectural Coatings
Tinting system compatibility
Low-VOC mode (<250g/L)
USDA BioPreferred option
Performance Data
Metric | Manual Filling | MF-1810 | Improvement |
|---|---|---|---|
Output | 15 gallons/hour | 40 gallons/hour | ↑167% |
Paint Waste | 4.8% | <0.3% | ↓94% |
Container Damage | 3-5% | <0.1% | ↓97% |
Color Variance | ΔE>1.2 | ΔE<0.5 | ↑140% |
Certifications
? CE EN 415-6 ? ATEX 2014/34/EU (MF-1820X) ? FDA 21 CFR 175.300 (Food Contact) ? ISO 12944 C5-M Corrosion Rating
Smart Control System
10" HMI with PaintOS?
Auto Recipe Recall: 100+ preset formulas
Predictive Maintenance:
Component
Alert Threshold
Pump wear
Vibration >4mm/s
Seal leakage
Pressure drop >15%
Blockchain Traceability: Batch records + QC data
