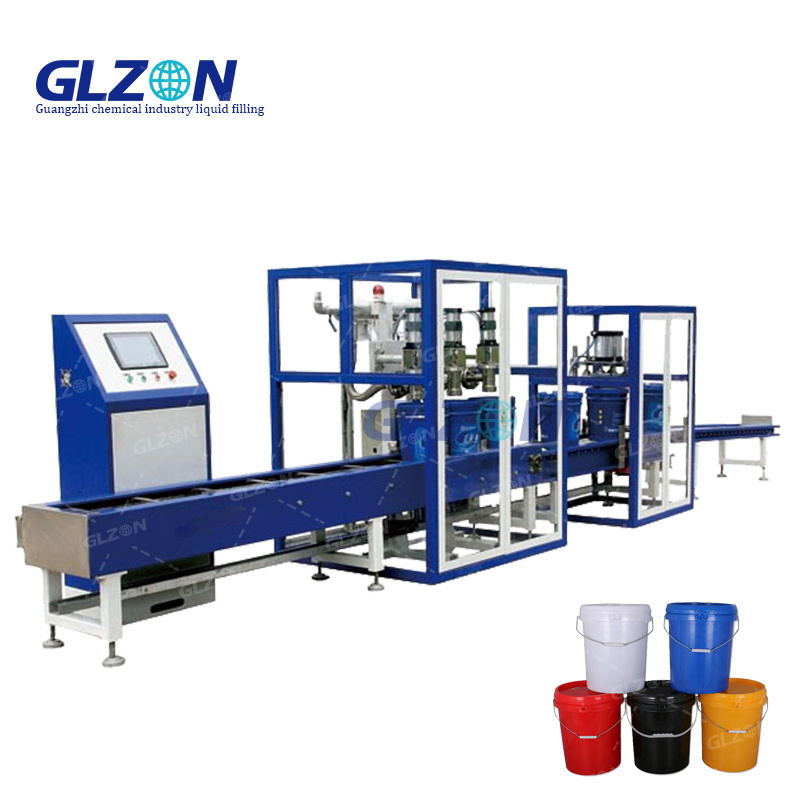

QuantFill Pro QP-10000 SeriesFully Automated Additive Weighing, Capping & Palletizing SystemEnd-to-End Gravimetric Packaging • 80 Drums/Hr • ±0.05% Accuracy • ATEX Zone 1 • Industry 4.0 Integratio
Fully Automated Additive Weighing, Capping & Palletizing System
End-to-End Gravimetric Packaging ? 80 Drums/Hr ? ±0.05% Accuracy ? ATEX Zone 1 ? Industry 4.0 Integration
| Subsystem | QP-1100 (Standard) | QP-1200X (ATEX) | QP-1300P (Pharma-Grade) |
|---|---|---|---|
| Filling Capacity | 5-200kg (±0.05%) | 5-200kg (±0.08%) | 5-200kg (±0.03%) |
| Throughput | 80 Drums/Hr | 75 Drums/Hr | 70 Drums/Hr |
| Weighing Accuracy | ±0.05% Gravimetric | ±0.08% | ±0.03% |
| Capping Torque | 5-200 N·m (±0.5%) | Same ±0.8% | Same ±0.3% |
| Palletizing Speed | 12 Cycles/Min | 11 Cycles/Min | 10 Cycles/Min |
| Viscosity Range | 1-5,000,000 cP | 100-3,000,000 cP | 50-10,000,000 cP |
| Material Contact | Hastelloy C276 | Zirconium R60702 | 316L EP (Ra<0.2μm) |
| Automation Level | Industry 4.0:<br>? AI Recipe Management<br>? Predictive Maintenance<br>? Digital Twin Integration | SIL-3 Safety PLC | 21 CFR Part 11 Compliance |
| VOC Containment | TripleShield?:<br>1. -0.8bar Vacuum Hood<br>2. Activated Carbon Adsorption<br>3. Kalrez?6375 Seals | + Nitrogen Inerting | VHP Sterilization |
| Certifications | CE, ISO 9001 | ATEX Zone 1 | FDA 21 CFR 175.300 |
| Parameter | Performance | Technology |
|---|---|---|
| Accuracy | ±0.05% | Temperature-Compensated Load Cells |
| Tare Speed | <3s | AI-Container Prediction |
| Density Compensation | ±0.01% | Coriolis Mass Flow Meter |
| Metric | Specification |
|---|---|
| Payload | 1,500kg |
| Positioning Accuracy | ±0.5mm (LiDAR SLAM) |
| Patterns | 50+ Pre-Programmed |
1. AGV Drum Infeed → 2. Auto-Tare Weighing → 3. Precision Filling (±0.05%) → 4. Torque Capping (5-200 N·m) → 5. Seal Integrity Test → 6. Robotic Palletizing → 7. Stretch Wrapping → 8. AGV to Warehouse
Cycle Time: 45 seconds/drum
Unified Precision Architecture
? Gravimetric Excellence: | **Component** | **Performance**| |----------------------|------------------------| | Load Cells| ASTM Class 0.02 | | Air Buoyancy Comp. | ±0.03% Error| | Flow Control| Adaptive PID Algorithm | ? Zero-Leak Capping: 1. Laser-Guided Thread Detection 2. Real-Time Torque Monitoring 3. Helium Mass Spec Verification ? Palletizing Intelligence: - 3D Vision Stacking Algorithms - Collision-Free Path Planning - Energy Recovery (35% Savings)
? ATEX 2014/34/EU Zone 1 ? FDA 21 CFR 175.300 ? ISO 8370:2021 (Robotic Safety)
BASF Additive Production Facility:
"After implementing QP-1200X:
Output: 45 → 80 Drums/Hr (+78%)
Material Savings: 2.8% → 0.06%
Cap Defect Rate: 1.5% → 0.02%
ROI Period: 8 months"
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.
Company Certificate
Our office and workshop
Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
This is a partial
service for us
in China.
Over 30 years of experience, every time we produce in
Shanghai, our friends can visit our factory at any time.
Brand components
We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.
Our service
Complete solution provided
Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.
Duty after death
Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.
Technology group
We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.
Successful collaboration
Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.
packge and delivery
Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
