ResinFill Pro RF-3000 Series30L Automatic Explosion-Proof Resin Filling SystemATEX Zone 1 Certified • 45 Drums/Hr • ±0.1% Gravimetric Accuracy • Triple VOC Containment • Industry 4.0 IntegrationCore T

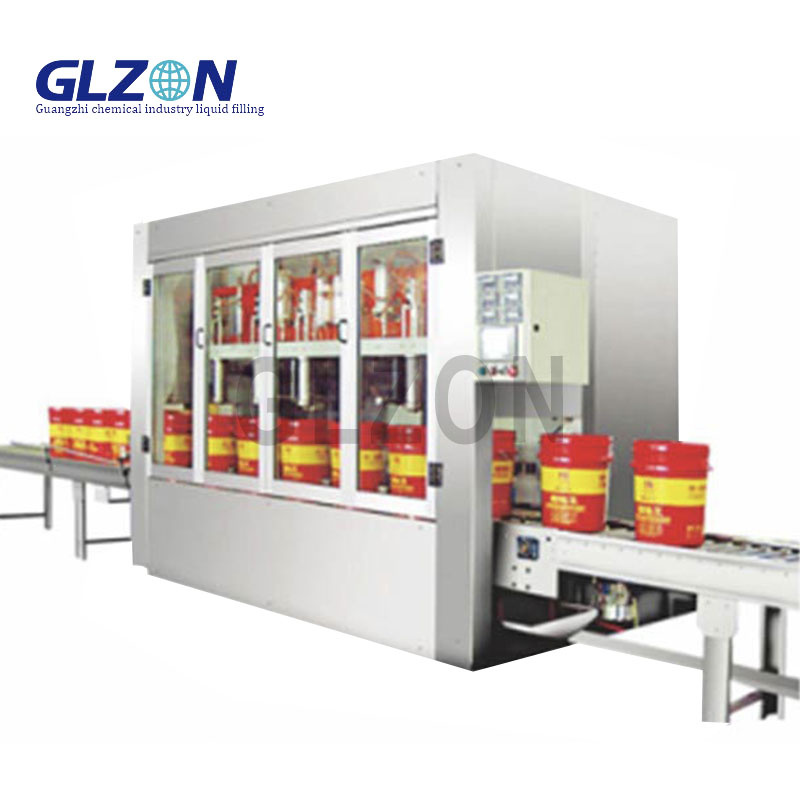

30L Automatic Explosion-Proof Resin Filling System
ATEX Zone 1 Certified ? 45 Drums/Hr ? ±0.1% Gravimetric Accuracy ? Triple VOC Containment ? Industry 4.0 Integration
| Parameter | RF-3100 (Standard) | RF-3200X (ATEX Zone 1) | RF-3300P (Pharma-Grade) |
|---|---|---|---|
| Capacity | 30L (±0.1%) | 30L (±0.15%) | 30L (±0.08%) |
| Throughput | 45 Drums/Hr | 40 Drums/Hr | 38 Drums/Hr |
| Accuracy | ±0.1% Gravimetric | ±0.15% | ±0.08% |
| Viscosity Range | 100-1,000,000 cP | 500-800,000 cP | 50-2,000,000 cP |
| Explosion Protection | ATEX Zone 1/21 | IECEx Zone 0 | ATEX Zone 1 + cGMP |
| Filling Technology | Coriolis Mass Flow + Gear Pump | ATEX Diaphragm Pump | Peristaltic Pump (FDA) |
| Material Contact | Hastelloy C276 | Zirconium Alloy | 316L EP (Ra<0.2μm) |
| VOC Containment | TripleLock? System:<br>1. N? Inerting (O?<0.3%)<br>2. -0.8bar Vacuum Hood<br>3. Activated Carbon Adsorption | + Explosion Venting | VHP Sterilization |
| Static Control | Ionized Air Curtain<br>? 10? ions/cm3 Output<br>? <0.1kV Surface Charge<br>? Spark Detection (0.1s Shutdown) | SIL-2 Certified | ESD Grounding System |
| Changeover Time | <90s (Auto-Tooling) | <110s | <75s |
| Power | 480V/60Hz, 15kW | 24VDC Ex ia | 480V/60Hz, 12kW |
| Certifications | CE, ISO 9001 | ATEX/IECEx Zone 0 | FDA 21 CFR 175.300 |
Performance Validation:
| Resin Type | Viscosity | Accuracy | Fill Speed |
|---|---|---|---|
| Epoxy Resin | 350,000 cP | ±0.07% | 180L/min |
| Polyurethane | 120,000 cP | ±0.09% | 160L/min |
| Silicone | 500,000 cP | ±0.12% | 150L/min |
| Layer | Technology | Certification |
|---|---|---|
| Primary Barrier | Nitrogen Inerting (O?<0.3%) | EN 60079-2 |
| Secondary Containment | -0.8bar Vacuum Hood | ASME Section VIII |
| Tertiary Capture | Activated Carbon Bed (99.97% VOC Adsorption) | EPA Method 25 |
Chemical Processing
| Resin Type | Technical Solution | Performance |
|---|---|---|
| Epoxy Systems | Heated Path (60°C±1°C) | 0% Crystallization |
| Polyurethane | Moisture Control (<10ppm H?O) | 0% Foaming |
| Vinyl Esters | PTFE-Lined Flow Path | HCl Resistance |
Electronics Manufacturing
ESD-Safe Design:
Precision Dispensing:
| Parameter | Specification |
|---|---|
| Pot Life Accuracy | ±0.5% Mix Ratio |
| Micro-Bubble Control | Vacuum Degassing (-0.9bar) |
Pharmaceutical Encapsulation
| cGMP Feature | Technical Implementation |
|---|---|
| Cleanability | SIP Validation (121°C/30min) |
| Data Integrity | 21 CFR Part 11 Audit Trail |
| Material Safety | USP Class VI Certification |
1. AGV Drum Delivery → 2. Robotic Lid Removal → 3. N? Purging (O?<0.3%) → 4. Precision Filling (±0.1%) → 5. Vacuum Nozzle Retract → 6. Torque-Sealing (50-150 N·m) → 7. Helium Leak Test → 8. VOC Recovery → 9. Automated Palletizing
Cycle Time: 80 seconds/drum
Zero-Risk Precision Engineering
? Explosion-Safe Architecture: | **Component** | **ATEX Solution**| |----------------------|---------------------------------| | Electrical System | Intrinsic Safety (Ex ia) | | Mechanical Seals| Double Containment Plan 53B | | Sensors | SIL-2 Certified Spark Detection | ? VOC-Free Operation: 1. 99.97% Carbon Adsorption Efficiency 2. -0.8bar Vacuum Containment Hood 3. Kalrez?6375 Seals (<0.01mg/m3 Leak) ? Industrial 4.0 Integration: - OPC UA/MQTT/PROFINET Connectivity - Predictive Maintenance AI - Blockchain Batch Tracking
? ATEX 2014/34/EU Zone 1/21 (Category 1G) ? IECEx IEC 60079-0/1/7/11 ? FDA 21 CFR 175.300 ? ASME BPE-2022 (RF-3300P)
Dow Chemical Resin Division:
"After implementing RF-3200X:
Output: 22 → 45 Drums/Hr (+105%)
VOC Emissions: ↓99.2% (Carbon Adsorption)
Accuracy: ±0.7% → ±0.08%
ROI Period: 8 months"
APPLICABLE BARREL TYPE
