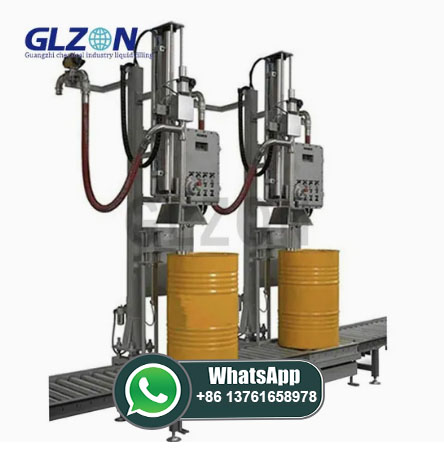

Automatic Mouth-Finding Filling Machine Is Suitable for Ink Solvent/Polyurethane Filling

2025-05-07 16:24:28 glzon

Mouth-Finding Filling Machine

Basic Info.

Model NO.
GZM-200L
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Drum Barrel
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Linear
Packaging
Barrel
Packaging Material
Wood
Application
Food, Beverages, Daily Necessities, Chemicals
Core Components
Pressure Vessels, Pumps, Plcs, Gears, Bearings, Ge
Voltage
220V 50/60Hz
Applicable Industries
Hotels, Manufacturing Plants, Food and Beverage Pl
Filling Accuracy
0.2%
Transport Package
Wood
Specification
3900*1000*1700mm
Trademark
GLZON
Origin
Shanghai

Product Description



Product Description

Automatic Mouth-Finding Filling Machine Is Suitable for Ink Solvent/Polyurethane Filling
Suitable for barrel shape



Automatic Mouth-Finding Filling Machine Is Suitable for Ink Solvent/Polyurethane Filling                    10L                                                                30L                                                                   50L
Automatic Mouth-Finding Filling Machine Is Suitable for Ink Solvent/Polyurethane Filling
                    200L                                                           1000L                                                         1000L

Product Parameters

Applicable materialsCoatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals and other liquids
Filling range(L)100-400L
power supplyAC220V 50/60Hz
Air pressure (Mpa)0.6-0.8MPA
Filling accuracy (%)±0.2%
Speed(can/hour)30-50 barrels(Depending on the material flow rate)
Materialsus304/sus316/carbon steel/PTFE

Product features

    ? The system adopts programmable PLC control, and the operation isguided by Chinese language, which is safe and reliable.
    ? Manual barrel loading, automatic filling, automatic conveying, manual capping, automatic positioning, easy to disassemble and wash
    ? The filling gun is manufactured with an integral process to prevent dripping and splashing; the quick-release connector is easy to disassemble and clean.
    ? The system target value can be set freely, and the height of the filling gun is adjustable, suitable for rapid filling of packaging barrels of various specifications.
    ? Good stability, reduce losses, save costs, improve  operating efficiency, and reduce manual operation pressure.
Automatic Mouth-Finding Filling Machine Is Suitable for Ink Solvent/Polyurethane Filling
Detailed Photos


Automatic Mouth-Finding Filling Machine Is Suitable for Ink Solvent/Polyurethane Filling
Features
Use below the liquid level in the barrel
type, suitable for 200L single barrel filling; uniquely designed adjustable pneumatic ball valve and
The spray valve not only increases the speed of the grain, but also ensures the accuracy of the grain; and it can
Minimize dripping of residual liquid when filling is completed; air collection hood can avoid filling
The release of volatile gases during installation effectively protects operators.
How to operate
During operation, as long as the empty barrel is installed on the empty barrel pipeline line, it will automatically stop and the
The nozzle device automatically places the empty barrel directly below the nozzle of the nozzle; the nozzle valve automatically lowers into the
After entering the barrel mouth, the empty barrel is automatically tared, and then the specific gravity is determined accurately at two speeds.
bundle, the spray valve automatically connects to the outside of the barrel, enters the full barrel pipeline, and reaches the capping position.
The piping machine stops, the cap is placed manually, the capping machine is pulled down to cap, and the weight is completed.
Automatic Mouth-Finding Filling Machine Is Suitable for Ink Solvent/Polyurethane Filling

Automatic Mouth-Finding Filling Machine Is Suitable for Ink Solvent/Polyurethane Filling
Touch screen PLC control
Touch screen, PLC, C3 level load cell, dual 6-bit high-precision weighing controller (sampling speed up to 128 times/second), and frequency converter to ensure filling quality and accuracy

Pneumatic filling
Computer weighing, submersible filling, frequency conversion three-speed adjustment. The filling volume can be set directly, easy to operate, and has a gap compensation function
Automatic Mouth-Finding Filling Machine Is Suitable for Ink Solvent/Polyurethane Filling

Company Profile

Automatic Mouth-Finding Filling Machine Is Suitable for Ink Solvent/Polyurethane Filling

Shanghai Guangzhi Automation Equipment Co., Ltd. is a domestic
high-tech enterprise located in Songjiang District, Shanghai. This is
Shanghai's large industry and large equipment manufacturing base.
"High excellence and high compatibility" is the manufacturing guideline
of Shanghai Guangzhi Instrument Equipment Co., Ltd. The company
has passed the IS09001 international quality system certification and
IS014001 environmental management system certification. The
mechanical equipment is gradually passing the "CE certification".
Shanghai Guangzhi Specializing in the production of packaging
machinery, customers are welcome to negotiate.



Factory strength display



Automatic Mouth-Finding Filling Machine Is Suitable for Ink Solvent/Polyurethane Filling                                                                            Shipping scenario
Automatic Mouth-Finding Filling Machine Is Suitable for Ink Solvent/Polyurethane FillingAutomatic Mouth-Finding Filling Machine Is Suitable for Ink Solvent/Polyurethane Filling

                                                                            Component brand

Automatic Mouth-Finding Filling Machine Is Suitable for Ink Solvent/Polyurethane Filling
