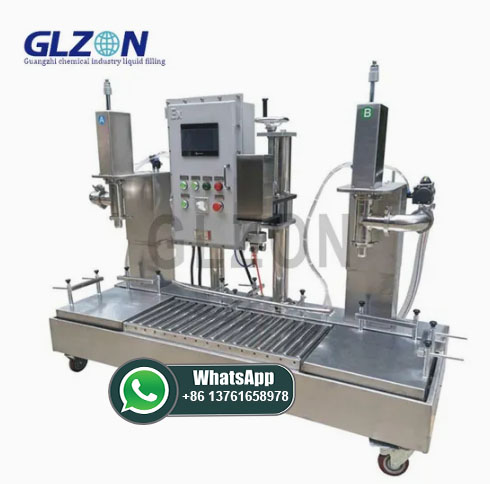

1-30L Fully Automatic Double Head Capping Acrylic Resin Filling Machine

2025-07-05 15:18:07 glzon

Acrylic Resin Filling Machine

Model NO.
GZM-30L
Type
Volumetric Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Single-Head
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Drum Barrel
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Linear
Packaging
Barrel
Packaging Material
Wood
Application
Food, Beverages, Daily Necessities, Chemicals
Core Components
Pressure Vessels, Pumps, Plcs, Gears, Bearings, Ge
Voltage
220V 50/60Hz
Applicable Industries
Hotels, Manufacturing Plants, Food and Beverage Pl
Filling Accuracy
0.2%
Transport Package
Wood
Specification
1300*850*1400mm
Trademark
GLZON
Origin
Shanghai

Packaging & Delivery

Package Size
160.00cm * 80.00cm * 180.00cm
Package Gross Weight
300.000kg

Product Description



Product Description


1-30L Fully Automatic Double Head Capping Acrylic Resin Filling Machine
Suitable for barrel shape



1-30L Fully Automatic Double Head Capping Acrylic Resin Filling Machine                               10L                                                                                  30L                                                                                50L
1-30L Fully Automatic Double Head Capping Acrylic Resin Filling Machine
                               200L                                                                            1000L                                                                              1000L

Product Parameters

Applicable materialsCoatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals and other liquids
Filling range(L)1-60L
power supplyAC220V 50/60Hz
Air pressure (Mpa)0.6-0.8MPA
Filling accuracy (%)±0.2%
Speed(can/min)3-6 barrels(Depending on the material flow rate)
Materialsus304/sus316/carbon steel/PTFE

Product features

    ? The system adopts programmable PLC control, and the operation isguided by Chinese language, which is safe and reliable.
    ? Manual barrel loading, automatic filling, automatic conveying, manual capping, automatic positioning, easy to disassemble and wash
    ? The filling gun is manufactured with an integral process to prevent dripping and splashing; the quick-release connector is easy to disassemble and clean.
    ? The system target value can be set freely, and the height of the filling gun is adjustable, suitable for rapid filling of packaging barrels of various specifications.
    ? Good stability, reduce losses, save costs, improve  operating efficiency, and reduce manual operation pressure.
1-30L Fully Automatic Double Head Capping Acrylic Resin Filling Machine
Detailed Photos


1-30L Fully Automatic Double Head Capping Acrylic Resin Filling Machine
Features

1. Intelligent and efficient: filling is prohibited without a bucket on the weighing platform, differential pressure zero-time bucket collision protection.Automatic peeling, automatic detection to start filling, intelligent anti-fooling, fault detection, etc., can be implemented.

2. One person can operate filling and capping operations at the same time.

3. Professional filling gun: Derived from German technology, professionally designed five-layer seal to ensure no dripping after filling; the filling gun height can be adjusted by 150mm, suitable for any barrel of the same specification;

4. Easy to operate: adjustable packaging barrel positioning groove, fast and accurate positioning;

5. Function switching: net weight/gross weight, automatic/manual function switching mode.
How to operate

1. Manually place the bucket on the weighing platform to quickly locate the counterpart - the system automatically detects the bucket position and fills the gun;

2. Automatically insert into the bucket mouth - automatically peel - automatically open the filling gun and ball valve group to start filling;

3. Loading---four-stage filling of large, medium, small and trace quantities---reach the target value---filling gun;

4. Automatically close and rise outside the barrel---manually move to the lid lock area---press the [Lock lid] button;

5. Pneumatic locking cover---manual palletizing.
1-30L Fully Automatic Double Head Capping Acrylic Resin Filling Machine

1-30L Fully Automatic Double Head Capping Acrylic Resin Filling Machine
Touch screen PLC control

Touch screen, PLC, C3 level load cell, dual 6-bit high-precision weighing controller (sampling speed up to 128 times/second), and frequency converter to ensure filling quality and accuracy

Pneumatic filling

Computer weighing, submersible filling, frequency conversion three-speed adjustment. The filling volume can be set directly, easy to operate, and has a gap compensation function
1-30L Fully Automatic Double Head Capping Acrylic Resin Filling Machine

Company Profile

1-30L Fully Automatic Double Head Capping Acrylic Resin Filling Machine

Our company

Shanghai Guangzhi Automation Equipment Co., Ltd. is a domestic high-tech enterprise located in Songjiang District, Shanghai. This is Shanghai's large industry and large equipment manufacturing base."High excellence and high compatibility" is the manufacturing guideline of Shanghai Guangzhi Instrument Equipment Co., Ltd. The company has passed the IS09001 international quality system certification and IS014001 environmental management system certification. The mechanical equipment is gradually passing the "CE certification". Shanghai Guangzhi Specializing in the production of packaging machinery, customers are welcome to negotiate.



Factory strength display



1-30L Fully Automatic Double Head Capping Acrylic Resin Filling Machine
Shipping scenario
1-30L Fully Automatic Double Head Capping Acrylic Resin Filling Machine1-30L Fully Automatic Double Head Capping Acrylic Resin Filling Machine

Component brand

1-30L Fully Automatic Double Head Capping Acrylic Resin Filling Machine
Special note

Note: Our company reserves the right to update product designs and speci?cations at any time. The product information description on this page does not constitute any guarantee or commitment, and is not regarded as a product or service contract term.
