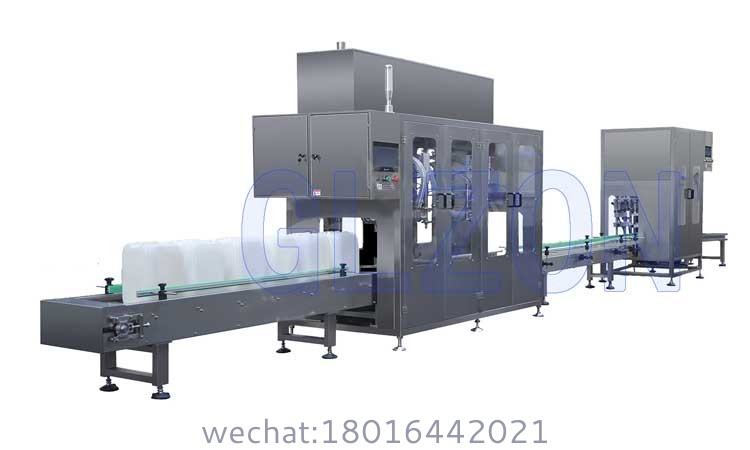

Automatic Filling Machine for 20L Jerry Can

An Automatic Filling Machine for 20L Jerry Cans is a highly efficient and precise system designed to fill 20-liter jerry cans with liquids such as oils, fuels, chemicals, or solvents. These machines are fully automated, reducing the need for manual intervention and significantly improving production rates. They are widely used in industries like lubricants, biofuels, chemicals, and food and beverage, where jerry cans are a popular packaging option due to their durability and ease of handling.

Key Features of an Automatic Filling Machine for 20L Jerry Cans:

1. High-Speed Filling:

• Capable of filling multiple jerry cans simultaneously for higher production rates.

• Typical speed: 30–60 jerry cans per hour, depending on the system.

2. Accurate Filling:

• Uses flow meters, load cells, or piston fillers to ensure precise filling volumes.

• Typical accuracy: ±0.1% to ±0.5% of target volume or weight.

3. Automated Container Handling:

• Includes conveyors, robotic arms, or automatic jerry can placers to position and remove jerry cans.

• Reduces manual labor and increases efficiency.

4. Material Compatibility:

• Constructed from corrosion-resistant materials like stainless steel (SS304 or SS316) for handling aggressive or food-grade liquids.

5. Safety Features:

• Grounding systems to eliminate static electricity, especially important for flammable liquids like fuels or solvents.

• Overfill protection to prevent spills.

• Emergency stop buttons and safety interlocks for operator protection.

6. Flexibility:

• Can handle jerry cans of different sizes (e.g., 10L, 20L, 25L) and designs (e.g., with or without handles).

• Suitable for a wide range of liquids, including low-viscosity and high-viscosity products.

7. Spill Containment:

• Equipped with drip trays or spill containment systems to maintain a clean and safe workspace.

8. Advanced Control Systems:

• PLC (Programmable Logic Controller) or HMI (Human-Machine Interface) for precise control and monitoring.

• Can integrate with other production line equipment (e.g., capping, labeling).

Types of Automatic Filling Machines for 20L Jerry Cans:

1. Gravity Fillers:

• Uses gravity to fill jerry cans. Suitable for low-viscosity liquids like fuels or solvents.

2. Piston Fillers:

• Uses a piston mechanism to dispense liquids. Suitable for high-viscosity or precise filling requirements.

3. Pump Fillers:

• Uses pumps to transfer liquids into jerry cans. Suitable for a wide range of viscosities.

4. Net Weight Fillers:

• Uses load cells to measure the weight of liquid dispensed. Highly accurate for dense or volatile liquids.

5. Rotary Fillers:

• High-speed filling machines for large-scale production.

• Can fill multiple jerry cans simultaneously.

Advantages of an Automatic Filling Machine for 20L Jerry Cans:

• High Efficiency: Automates the entire filling process, significantly increasing production rates.

• Accuracy: Ensures consistent filling volumes, reducing product waste.

• Reduced Labor Costs: Minimizes the need for manual intervention.

• Improved Safety: Reduces the risk of spills and operator exposure to hazardous materials.

• Versatility: Can handle a wide range of liquids and jerry can sizes.

Applications:

• Fuels: Filling jerry cans with gasoline, diesel, or kerosene.

• Lubricants: Dispensing motor oils, gear oils, or hydraulic fluids.

• Chemicals: Handling solvents, acids, or cleaning agents.

• Food and Beverage: Filling jerry cans with edible oils, syrups, or sauces.

• Biofuels: Packaging biodiesel or other renewable fuels.

Components of an Automatic Filling Machine for 20L Jerry Cans:

1. Unscrambler or Container Loading System:

• Automatically feeds empty jerry cans into the production line.

2. Filling Machine:

• Accurately fills 20L jerry cans with the desired liquid.

3. Capping Machine:

• Automatically applies caps or lids to filled jerry cans.

4. Conveyor System:

• Transports jerry cans between different stages of the production line.

5. Inspection Systems:

• Checkweigher: Ensures each jerry can meets the required weight specifications.

• Leak Detector: Checks for leaks in sealed jerry cans.

• Vision System: Inspects labels, caps, and fill levels for quality control.

6. Control System:

• PLC (Programmable Logic Controller): Automates and monitors the entire production line.

• HMI (Human-Machine Interface): Provides a user-friendly interface for operators to control and adjust settings.

Considerations When Choosing an Automatic Filling Machine:

1. Liquid Properties:

• Consider viscosity, density, and corrosiveness of the liquid.

2. Production Volume:

• Choose a machine that meets your daily or hourly throughput requirements.

3. Jerry Can Design:

• Ensure compatibility with your jerry can type (e.g., with or without handles).

4. Safety and Compliance:

• Verify that the machine meets industry standards for handling hazardous or flammable liquids.

5. Integration:

• Ensure the machine can integrate with other equipment in your production line (e.g., capping, labeling).

Example Specifications for an Automatic Filling Machine for 20L Jerry Cans:

• Filling Capacity: 20 liters per jerry can.

• Filling Speed: 30–60 jerry cans per hour.

• Accuracy: ±0.2% of target volume or weight.

• Power Supply: 220V/380V, 50Hz/60Hz.

• Material: Stainless steel (SS304 or SS316).

Workflow of an Automatic Filling Machine for 20L Jerry Cans:

1. Container Loading: Empty jerry cans are fed into the line using an unscrambler or conveyor.

2. Filling: Jerry cans are filled with the desired liquid.

3. Capping: Filled jerry cans are sealed with caps or lids.

4. Inspection: Jerry cans are checked for weight, leaks, and label accuracy.

5. Packaging: Filled and labeled jerry cans are moved to the packaging area for storage or shipment.

An Automatic Filling Machine for 20L Jerry Cans is an essential investment for businesses looking to improve efficiency, accuracy, and safety in their liquid packaging process. It is ideal for high-volume production and can be customized to meet your specific needs.
