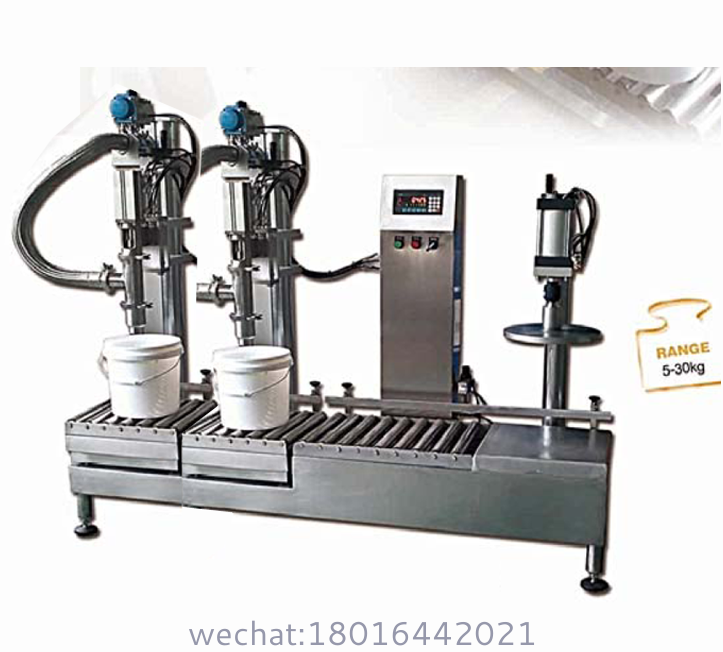

5-gallon filling machine for lubricating oil
A 5-Gallon Filling Machine for Lubricating Oil is a specialized piece of equipment designed to accurately and efficiently fill 5-gallon containers (pails or jerry cans) with lubricating oils, such as motor oil, gear oil, or hydraulic fluid. These machines are widely used in the lubricants industry to ensure precise filling, reduce spillage, and improve productivity. They are available in semi-automatic and fully automatic configurations, depending on the level of automation required.
Key Features of a 5-Gallon Filling Machine for Lubricating Oil:
Accurate Filling:
Uses flow meters, load cells, or piston fillers to ensure precise filling volumes.
Typical accuracy: ±0.1% to ±0.5% of target volume or weight.
Material Compatibility:
Constructed from corrosion-resistant materials like stainless steel (SS304 or SS316) for handling lubricating oils.
Safety Features:
Grounding systems to eliminate static electricity, especially important for flammable oils.
Overfill protection to prevent spills.
Emergency stop buttons and safety interlocks for operator protection.
Flexibility:
Can handle 5-gallon pails or jerry cans of different designs (e.g., with or without handles).
Suitable for a wide range of lubricating oils, including low-viscosity and high-viscosity products.
Automation Levels:
Semi-Automatic: Operators manually place and remove containers, while the machine controls the filling process.
Fully Automatic: Includes automated container handling, such as conveyors or robotic arms, for higher throughput.
Spill Containment:
Equipped with drip trays or spill containment systems to maintain a clean and safe workspace.
User-Friendly Interface:
Features a control panel (touchscreen or buttons) for setting filling parameters, such as volume, weight, or fill speed.
Can store multiple recipes for different oil types.
Types of 5-Gallon Filling Machines for Lubricating Oil:
Gravity Fillers:
Uses gravity to fill containers. Suitable for low-viscosity oils.
Piston Fillers:
Uses a piston mechanism to dispense oils. Suitable for high-viscosity or precise filling requirements.
Pump Fillers:
Uses pumps to transfer oils into containers. Suitable for a wide range of viscosities.
Net Weight Fillers:
Uses load cells to measure the weight of oil dispensed. Highly accurate for dense or viscous oils.
Advantages of a 5-Gallon Filling Machine for Lubricating Oil:
High Accuracy: Ensures consistent filling volumes, reducing product waste.
Efficiency: Faster than manual filling, improving production rates.
Reduced Labor Costs: Minimizes the need for manual intervention.
Improved Safety: Reduces the risk of spills and operator exposure to hazardous materials.
Versatility: Can handle a wide range of lubricating oils and container sizes.
Applications:
Motor Oils: Filling 5-gallon pails with engine oils for automotive use.
Gear Oils: Dispensing gear oils for industrial machinery.
Hydraulic Fluids: Handling hydraulic oils for construction equipment.
Industrial Lubricants: Filling pails with specialty lubricants for manufacturing processes.
Components of a 5-Gallon Filling Machine for Lubricating Oil:
Container Handling System:
Semi-Automatic: Operators manually place and remove containers.
Fully Automatic: Includes conveyors or robotic arms for automated container handling.
Filling Machine:
Accurately fills 5-gallon containers with lubricating oil.
Capping Machine (Optional):
Automatically applies caps or lids to filled containers.
Conveyor System:
Transports containers between different stages of the production line.
Control System:
PLC (Programmable Logic Controller): Automates and monitors the filling process.
HMI (Human-Machine Interface): Provides a user-friendly interface for operators to control and adjust settings.
Considerations When Choosing a 5-Gallon Filling Machine:
Oil Viscosity:
Ensure the machine is compatible with the viscosity of the lubricating oil being filled.
Production Volume:
Choose a machine that meets your daily or hourly throughput requirements.
Container Type:
Verify compatibility with your container design (e.g., pails, jerry cans).
Automation Level:
Decide between semi-automatic and fully automatic based on your budget and production needs.
Safety and Compliance:
Verify that the machine meets industry standards for handling flammable or hazardous oils.
Example Specifications for a 5-Gallon Filling Machine for Lubricating Oil:
Filling Capacity: 5 gallons (18.9 liters) per container.
Filling Speed:
Semi-Automatic: 10–20 containers per hour.
Fully Automatic: 30–60 containers per hour.
Accuracy: ±0.2% of target volume or weight.
Power Supply: 220V/380V, 50Hz/60Hz.
Material: Stainless steel (SS304 or SS316).

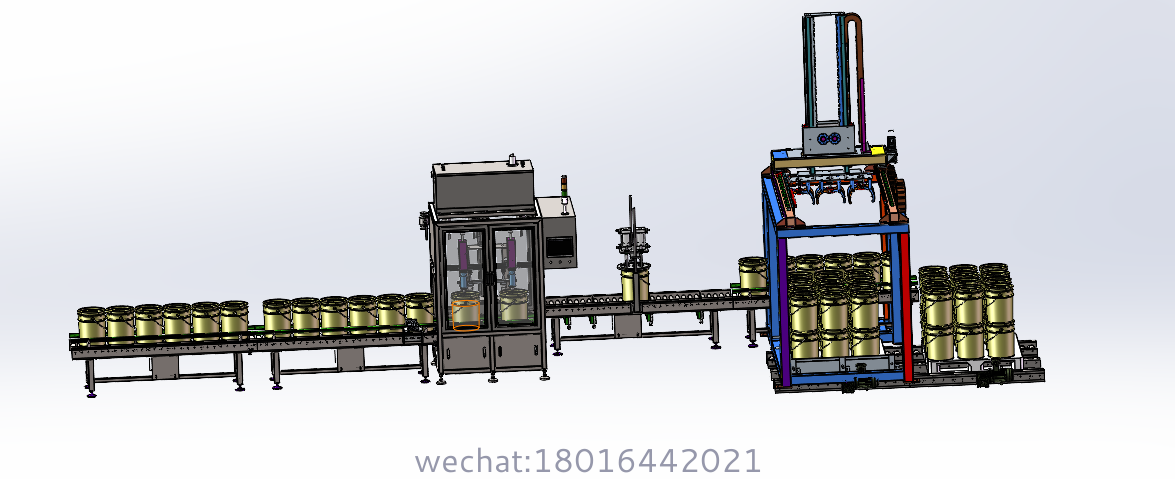

Workflow of a 5-Gallon Filling Machine for Lubricating Oil:
Container Loading: Empty containers are placed on the filling station manually or via a conveyor.
Filling: Containers are filled with lubricating oil.
Capping: Filled containers are sealed with caps or lids (optional).
Inspection: Filled containers are checked for weight or volume accuracy.
Packaging: Filled containers are moved to the packaging area for storage or shipment.
Safety Tips for Handling Lubricating Oils:
Grounding:
Use grounding systems to eliminate static electricity when handling flammable oils.
Ventilation:
Ensure the filling area is well-ventilated to prevent the buildup of hazardous vapors.
Personal Protective Equipment (PPE):
Operators should wear gloves, goggles, and flame-resistant clothing.
Spill Management:
Have spill containment systems and absorbent materials on hand.
A 5-Gallon Filling Machine for Lubricating Oil is an essential investment for businesses that require efficient, accurate, and safe filling of lubricating oils. Whether you're handling motor oils, gear oils, or hydraulic fluids, these machines can be customized to meet your specific production needs while ensuring compliance with industry safety standards.
